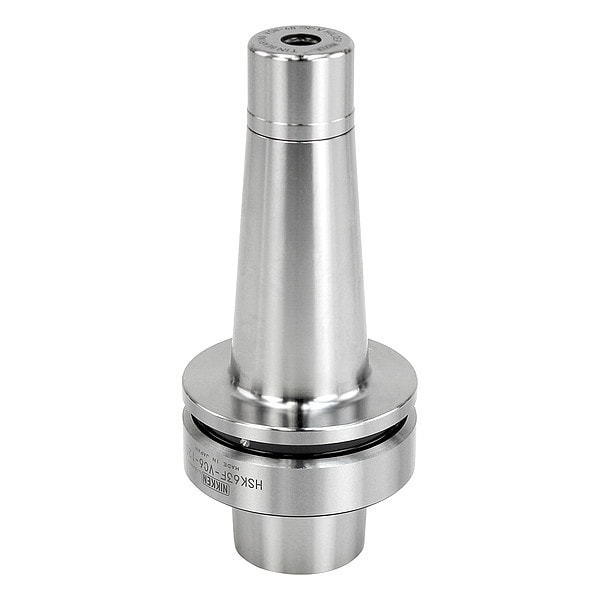

Collet Chuck, HSK63F, VC6, Project 120mm

  • Mfr # HSK63F-VC6-120
  • Zoro # G0538557
product price:
$
624.99
/ea
Free Shipping & Returns

Key Features

Collet Series
VC6
For Use With
VC Collets
Min. Collet Capacity
0.0790 in
Taper Size
HSK63
Projection
4.72 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HSK63F-VC6-120
Zoro #
G0538557
UPC #
-
Country of Origin
Japan
Item
Collet Chuck
Collet Series
VC6
For Use With
VC Collets
Min. Collet Capacity
0.0790 in
Projection
4.72 in
Material
High Speed Steel
Pre-Balanced
Yes
Balanceable
No
Coolant Through
Yes
Max. Collet Capacity
0.236 in
Coolant Fed
Coolant Through
Features
Pre-Balanced
T.I.R. Tolerance
0 in
Includes Coolant Screws
Coolant Screws Included
Compatible Collet Series
VC6
Compatible Collet Wrench
GH10
Includes Nut
Nut Included
Shank Type
Taper
Product Type
HSK Collet Chuck
Balance Rating
G2.5
Torque - Maximum
37 ft-lb
Speed - Maximum
30,000 RPM
Coolant Supply
Coolant Through
Shell Material
High Speed Steel
Traction Material
High Speed Steel

Dimensions

Taper Size
HSK63
Nut Dia.
1.083 in
Overall Length
5 45/64 in
Nose Dia.
1.0830 in
Compatible Collet Size - Maximum
0.25 in
Nut Diameter
1.08 in
Outside Diameter - Maximum
1.08 in
Compatible Collet Size - Minimum
0.08 in
Wire Rope Length
5 45/64 in
Length
5 45/64 in

Description

Collet Chuck, Taper Size HSK63, Min. Collet Capacity 0.0790 in, Max. Collet Capacity 0.236 in, Projection 4.72 in, VC6
