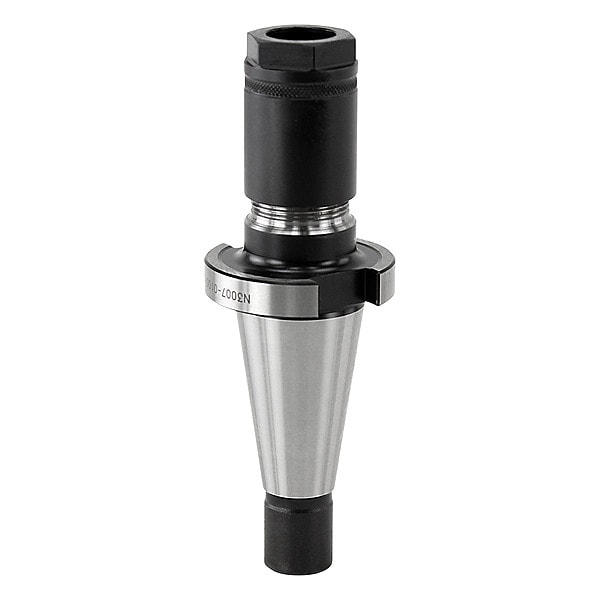

Lyndex-Nikken Collet Chuck, NMTB30, 100DA, Projct 2.750in N3007-0100-2.75 - main
Shop LYNDEX-NIKKEN

Collet Chuck, NMTB30, 100DA, Projct 2.750in

  • Mfr # N3007-0100-2.75

  • Zoro # G0538356

product price:  $133.99
/ea
Free Shipping & Returns

Key Features

Collet Series
DA100
For Use With
DA Collets
Nut Dia.
1.106 in
Material
Molybdenum
Max. Collet Capacity
0.562 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N3007-0100-2.75
Zoro #
G0538356
UPC #
-
Country of Origin
India

Dimensions

Nut Dia.
1.106 in
Taper Size
NMTB30
Overall Length
5 7/16 in
Nose Dia.
1.0600 in
Nut Diameter
1.06 in
Compatible Collet Size - Maximum
0.56 in
Compatible Collet Size - Minimum
0.02 in
Outside Diameter - Maximum
1.06 in

Details

Item
Collet Chuck
Collet Series
DA100
For Use With
DA Collets
Material
Molybdenum
Max. Collet Capacity
0.562 in
Min. Collet Capacity
0.0470 in
Projection
2.76 in
Pre-Balanced
Yes
Coolant Through
Yes
Balanceable
No
Coolant Fed
Coolant Through
Features
Pre-Balanced
Includes Coolant Screws
Coolant Screws Included
T.I.R. Tolerance
0 in
Finish
Nickel Chrome
Coolant Supply
Coolant Through
Includes Nut
Nut Included
Product Type
NMTB Collet Chuck
Speed - Maximum
20,000 RPM
Compatible Collet Series
DA100
Shank Type
Taper
Compatible Nut Model Number
100DA-NUT

Description

Collet Chuck, Taper Size NMTB30, Min. Collet Capacity 0.0470 in, Max. Collet Capacity 0.562 in, Projection 2.76 in, DA100
