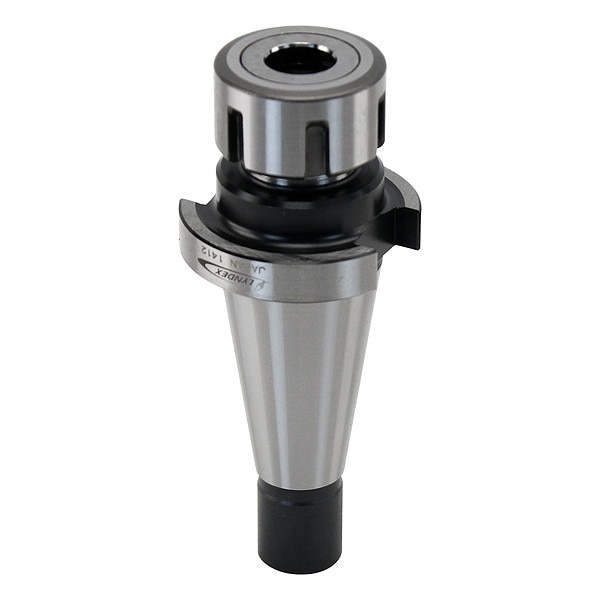

Lyndex-Nikken Collet Chuck, NMTB30, ER16, Project 1.770in N3007-0016-1.77 - main

Collet Chuck, NMTB30, ER16, Project 1.770in

  • Mfr # N3007-0016-1.77

  • Zoro # G0538365

product price:  $316.99
/ea
Free Shipping & Returns

Key Features

Collet Series
ER16
For Use With
ER Collets
Taper Size
NMTB30
Min. Collet Capacity
0.0190 in
Coolant Through
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
N3007-0016-1.77
Zoro #
G0538365
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Taper Size
NMTB30
Nut Dia.
1.260 in
Overall Length
4 15/32 in
Nose Dia.
1.2600 in
Nut Diameter
1.26 in
Compatible Collet Size - Minimum
0.02 in
Outside Diameter - Maximum
1.26 in
Compatible Collet Size - Maximum
0.39 in
Shank Thread Size
M22

Details

Item
Collet Chuck
Collet Series
ER16
For Use With
ER Collets
Min. Collet Capacity
0.0190 in
Coolant Through
Yes
Material
Molybdenum
Max. Collet Capacity
0.406 in
Balanceable
No
Projection
1.75 in
Pre-Balanced
Yes
Coolant Fed
Coolant Through
Features
Pre-Balanced
Standards
DIN 6499
Compatible Collet Series
ER16
T.I.R. Tolerance
0 in
Compatible Collet Wrench
016-SPAN
Torque - Maximum
40 ft-lb
Includes Coolant Screws
Coolant Screws Included
Shank Type
Taper
Speed - Maximum
23,000 RPM
Includes Nut
Nut Included
Coolant Supply
Coolant Through
Product Type
NMTB Collet Chuck
Compatible Nut Model Number
E16-NUT
Finish
Nickel Chrome

Description

Collet Chuck, Taper Size NMTB30, Min. Collet Capacity 0.0190 in, Max. Collet Capacity 0.406 in, Projection 1.75 in, ER16
