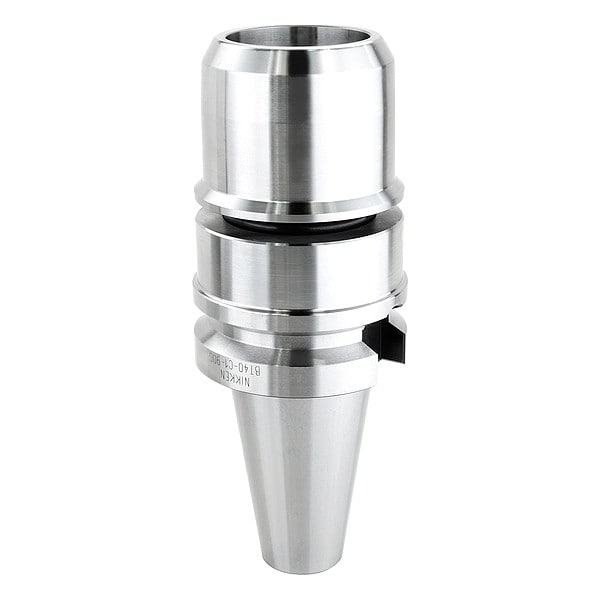

HS Milling Chck Holder, BT40, Proj 3.54in
- Mfr # BT40-C1-90G
- Zoro # G0543210
product price:Â
$
729.99
/ea
Free Shipping & Returns
Key Features
Collet Series
KM1
Coolant Through
Yes
Bore Depth
2.3200 in to 3.1500 in
Taper Size
BT50
Projection
4.133 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BT40-C1-90G
- Zoro #
- G0543210
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Bore Depth
- 2.3200 in to 3.1500 in
- Taper Size
- BT50
- Nose Dia.
- 2.1600 in
- Hole Dia.
- 1 in
- Nose Diameter
- 2.72 in
Details
- Item
- Milling Chuck
- Collet Series
- KM1
- Coolant Through
- Yes
- Projection
- 4.133 in
- Coolant Fed
- Coolant Through
- TIR Max.
- Less Than 0.0002 in
- Clamping Range
- 1/8 in to 1 in
- Features
- 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
- Measurement System
- Inch
- Coolant Supply
- Coolant Through
- Product Type
- Milling Chuck
- Contact Type
- Dual Contact
- Compatible Reducing Sleeve
- CCK1-1/4; CCNK1-1/4; KM1-1/4
- Includes Spanner Wrench
- Spanner Wrench Not Included
- Compatible Spanner Wrench Manufacturer Model Number
- 9CKR; 9HC32; CCKL32
- Speed - Maximum
- 8,000 RPM
- T.I.R. Tolerance
- 0.0002 in
- Material
- Molybdenum 4340
- Shell Material
- Molybdenum 4340
Description
Milling Chuck, Taper Size BT50, Hole Dia. 1 in, Nose Dia. 2.1600 in, Collet Series KM1, Projection 4.133 in, Coolant Fed Coolant Through, Bore Depth 2.3200 in to 3.1500 in, Clamping Range 1/8 in to 1 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
