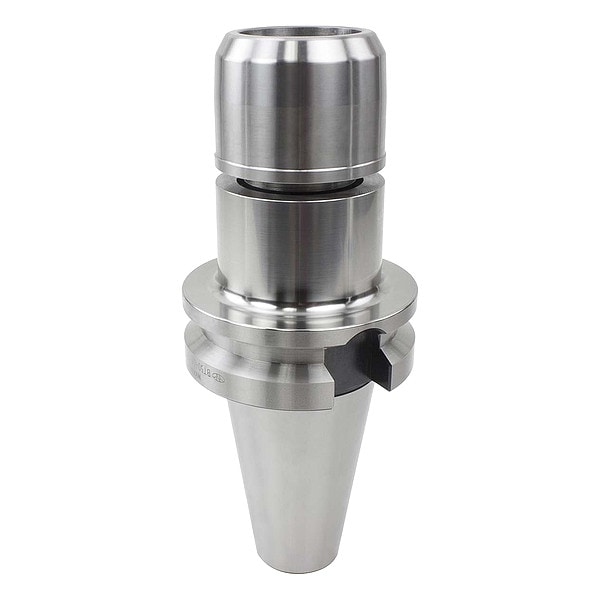

HS Milling Chck Holder, BT50, Nose 2.677in
Mfr # BT50-C1.1/4-90G
Zoro # G0542809
product price:Â $854.99
/ea
Free Shipping & Returns
Key Features
Collet Series
KM1.1/4
Coolant Through
Yes
Bore Depth
3.15 in
Hole Dia.
1-1/4 in
Projection
3.15 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- BT50-C1.1/4-90G
- Zoro #
- G0542809
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Taper Size
- CAT40
- Bore Depth
- 3.15 in
- Nose Dia.
- 2.6700 in
- Hole Dia.
- 1-1/4 in
- Nose Diameter
- 2.165 in
Details
- Item
- Milling Chuck
- Collet Series
- KM1.1/4
- Coolant Through
- Yes
- Projection
- 3.15 in
- Coolant Fed
- Coolant Through
- TIR Max.
- Less Than 0.0002 in
- Clamping Range
- 3/16 in to 1-1/4 in
- Features
- 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
- Finish
- Nickel Chromium
- Material
- Molybdenum 4340
- Coolant Supply
- Coolant Through
- T.I.R. Tolerance
- 0.0002 in
- Compatible Spanner Wrench Manufacturer Model Number
- GH25
- Measurement System
- Inch
- Contact Type
- Dual Contact
- Speed - Maximum
- 20,000 RPM
- Compatible Reducing Sleeve
- KM1
- Product Type
- Milling Chuck
Description
Milling Chuck, Taper Size CAT40, Hole Dia. 1-1/4 in, Nose Dia. 2.6700 in, Collet Series KM1.1/4, Projection 3.15 in, Coolant Fed Coolant Through, Bore Depth 3.15 in, Clamping Range 3/16 in to 1-1/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
