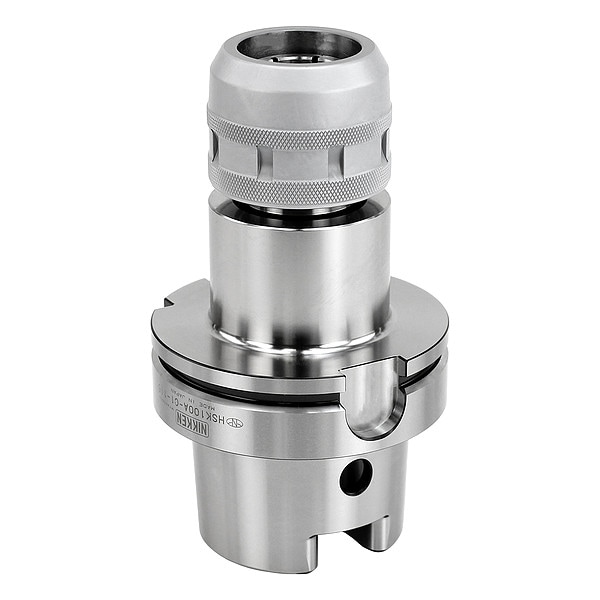

Milling Chuck Holder, 2.320 to 3.150in.
Mfr # HSK100A-C1-115
Zoro # G0539528
product price:Â $849.99
/ea
Free Shipping & Returns
Key Features
Projection
2.972 in
Hole Dia.
1 in
Coolant Through
Yes
Taper Size
H63
Collet Series
KM1
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- HSK100A-C1-115
- Zoro #
- G0539528
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Hole Dia.
- 1 in
- Nose Dia.
- 2.3600 in
- Taper Size
- H63
- Bore Depth
- 3.15 in
- Nose Diameter
- 2.36 in
Details
- Item
- Milling Chuck
- Projection
- 2.972 in
- Coolant Through
- Yes
- Collet Series
- KM1
- Coolant Fed
- Coolant Through
- Clamping Range
- 1/8 in to 1 in
- Features
- 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
- TIR Max.
- Less Than 0.0002 in
- Includes Spanner Wrench
- Spanner Wrench Not Included
- Compatible Spanner Wrench Manufacturer Model Number
- 9CKR; 9HC25; CCKL25
- Coolant Supply
- Coolant Through
- Measurement System
- Inch
- Material
- Molybdenum 4340
- Compatible Reducing Sleeve
- CCK1; CCNK1; KM1
- Speed - Maximum
- 8,000 RPM
- T.I.R. Tolerance
- 0.0002 in
- Product Type
- Milling Chuck
Description
Milling Chuck, Taper Size H63, Hole Dia. 1 in, Nose Dia. 2.3600 in, Collet Series KM1, Projection 2.972 in, Coolant Fed Coolant Through, Bore Depth 3.15 in, Clamping Range 1/8 in to 1 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
