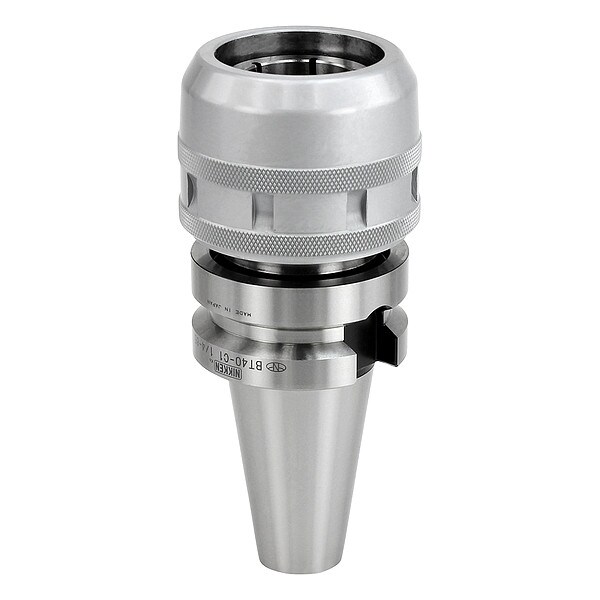

Milling Chuck Holder, BT40, 2.530-3.031in
Mfr # BT40-C1.1/4-85
Zoro # G0543265
product price: $683.99
/ea
Free Shipping & Returns
Key Features
Taper Size
BT40
Collet Series
KM1.1/4
Hole Dia.
1-1/4 in
Projection
3.149 in
Nose Dia.
2.7100 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BT40-C1.1/4-85
Zoro #
G0543265
UPC #
-
Country of Origin
Japan
Dimensions
Taper Size
BT40
Hole Dia.
1-1/4 in
Nose Dia.
2.7100 in
Bore Depth
2.5300 in to 3.0300 in
Nose Diameter
2.05 in
Details
Collet Series
KM1.1/4
Projection
3.149 in
Item
Milling Chuck
Coolant Through
Yes
Coolant Fed
Coolant Through
Clamping Range
3/16 in to 1-1/4 in
TIR Max.
Less Than 0.0002 in
Features
140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
Contact Type
Dual Contact
Material
Molybdenum 4340
Product Type
Milling Chuck
Includes Spanner Wrench
Spanner Wrench Not Included
Compatible Spanner Wrench Manufacturer Model Number
9CKR; 9HC22; CCKL20
Measurement System
Inch
Speed - Maximum
8,000 RPM
Coolant Supply
Coolant Through
Compatible Reducing Sleeve
CCK3/4; CCNK3/4; KM3/4
T.I.R. Tolerance
0.0002 in
Description
Milling Chuck, Taper Size BT40, Hole Dia. 1-1/4 in, Nose Dia. 2.7100 in, Collet Series KM1.1/4, Projection 3.149 in, Coolant Fed Coolant Through, Bore Depth 2.5300 in to 3.0300 in, Clamping Range 3/16 in to 1-1/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
