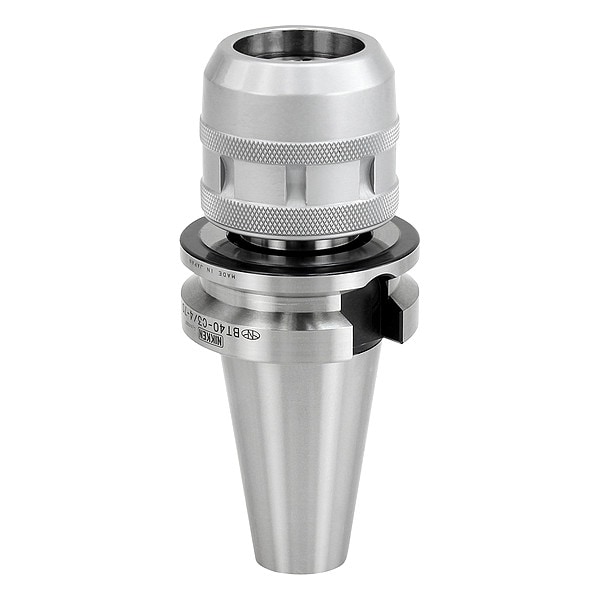

Milling Chuck Holder, BT40, Nose 2.047in
- Mfr # BT40-C3/4-70
- Zoro # G0543186
product price:Â
$
591.99
/ea
Free Shipping & Returns
Key Features
Collet Series
KM3/4
Bore Depth
4.13 in
Hole Dia.
3/4 in
Coolant Through
Yes
Projection
4.133 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BT40-C3/4-70
- Zoro #
- G0543186
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Nose Dia.
- 2.0400 in
- Taper Size
- BT50
- Bore Depth
- 4.13 in
- Hole Dia.
- 3/4 in
- Nose Diameter
- 2.716 in
Details
- Collet Series
- KM3/4
- Item
- Milling Chuck
- Coolant Through
- Yes
- Projection
- 4.133 in
- Coolant Fed
- Coolant Through
- Features
- 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
- TIR Max.
- Less Than 0.0002 in
- Clamping Range
- 1/8 in to 3/4 in
- Product Type
- Milling Chuck
- Compatible Spanner Wrench Manufacturer Model Number
- 9HC32
- Speed - Maximum
- 20,000 RPM
- Coolant Supply
- Coolant Through
- Compatible Reducing Sleeve
- KM32
- Material
- Molybdenum 4340
- Measurement System
- Inch
- Contact Type
- Dual Contact
- Includes Spanner Wrench
- Spanner Wrench Not Included
- T.I.R. Tolerance
- 0.0002 in
- Shell Material
- Molybdenum 4340
Description
Milling Chuck, Taper Size BT50, Hole Dia. 3/4 in, Nose Dia. 2.0400 in, Collet Series KM3/4, Projection 4.133 in, Coolant Fed Coolant Through, Bore Depth 4.13 in, Clamping Range 1/8 in to 3/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
