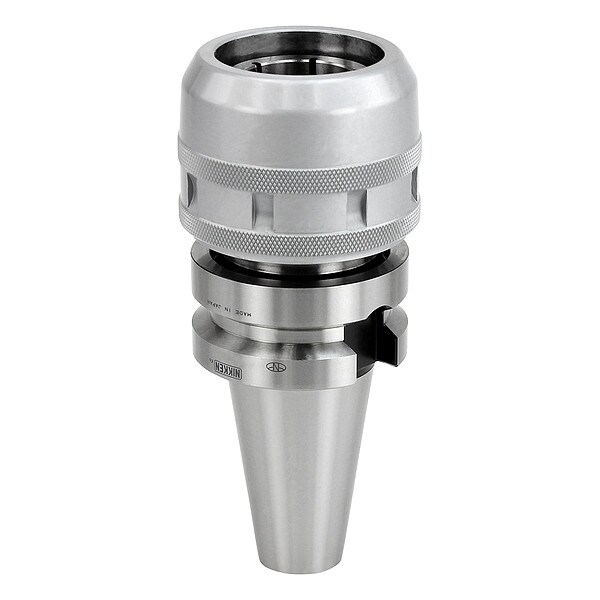

Milling Chuck Holder, BT40, Nose 2.717in
Mfr # BT40-C32-105
Zoro # G0543168
product price:Â $619.99
/ea
Free Shipping & Returns
Key Features
Coolant Through
Yes
Bore Depth
3.15 in
Hole Dia.
32mm
Nose Dia.
2.7100 in
Collet Series
KM32
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BT40-C32-105
- Zoro #
- G0543168
- UPC #
- -
- Country of Origin
- Japan
Dimensions
- Bore Depth
- 3.15 in
- Hole Dia.
- 32mm
- Nose Dia.
- 2.7100 in
- Taper Size
- CAT40
- Nose Diameter
- 2.362 in
Details
- Coolant Through
- Yes
- Collet Series
- KM32
- Item
- Milling Chuck
- Projection
- 3.15 in
- Coolant Fed
- Coolant Through
- Clamping Range
- 3.00mm to 32.00mm
- TIR Max.
- Less Than 0.0002 in
- Features
- 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
- Measurement System
- Inch
- Speed - Maximum
- 20,000 RPM
- Finish
- Nickel Chromium
- Compatible Spanner Wrench Manufacturer Model Number
- 9HC25
- Compatible Reducing Sleeve
- KM1
- T.I.R. Tolerance
- 0.0002 in
- Material
- Molybdenum 4340
- Product Type
- Milling Chuck
- Coolant Supply
- Coolant Through
Description
Milling Chuck, Taper Size CAT40, Hole Dia. 32mm, Nose Dia. 2.7100 in, Collet Series KM32, Projection 3.15 in, Coolant Fed Coolant Through, Bore Depth 3.15 in, Clamping Range 3.00mm to 32.00mm, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
