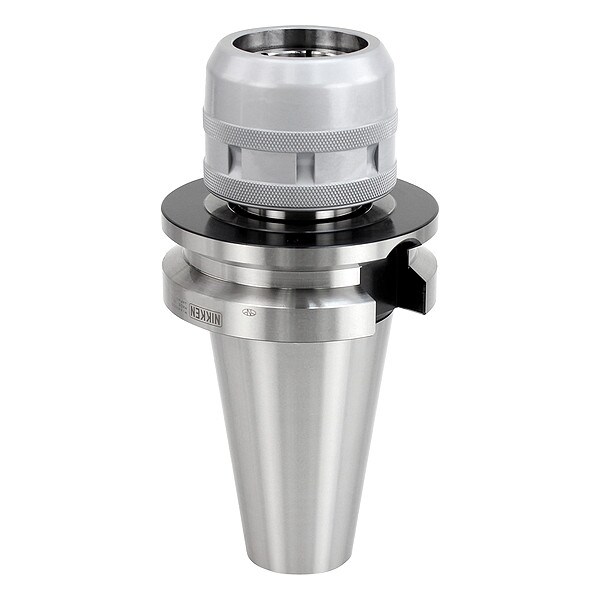

Milling Chuck Holder, BT50, Nose 2.047in
- Mfr # BT50-C3/4-105
- Zoro # G0542781
product price:Â
$
739.99
/ea
Free Shipping & Returns
Key Features
Bore Depth
2.0800 in to 3.1500 in
Collet Series
KM3/4
Projection
3.031 in
Hole Dia.
3/4 in
Coolant Through
Yes
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BT50-C3/4-105
- Zoro #
- G0542781
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Bore Depth
- 2.0800 in to 3.1500 in
- Taper Size
- CAT40
- Hole Dia.
- 3/4 in
- Nose Dia.
- 2.0400 in
- Nose Diameter
- 2.717 in
Details
- Collet Series
- KM3/4
- Projection
- 3.031 in
- Coolant Through
- Yes
- Item
- Milling Chuck
- Coolant Fed
- Coolant Through
- Clamping Range
- 1/8 in to 3/4 in
- Features
- 140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
- TIR Max.
- Less Than 0.0002 in
- Material
- Molybdenum 4340
- Compatible Reducing Sleeve
- KM1.1/4
- T.I.R. Tolerance
- 0.0002 in
- Measurement System
- Inch
- Speed - Maximum
- 20,000 RPM
- Product Type
- Milling Chuck
- Coolant Supply
- Coolant Through
- Finish
- Nickel Chromium
- Compatible Spanner Wrench Manufacturer Model Number
- 9HC32
- Shell Material
- Molybdenum 4340
Description
Milling Chuck, Taper Size CAT40, Hole Dia. 3/4 in, Nose Dia. 2.0400 in, Collet Series KM3/4, Projection 3.031 in, Coolant Fed Coolant Through, Bore Depth 2.0800 in to 3.1500 in, Clamping Range 1/8 in to 3/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
