  13. 3 Phase Monitor Relay, DPDT, 500VAC, 0 Pin

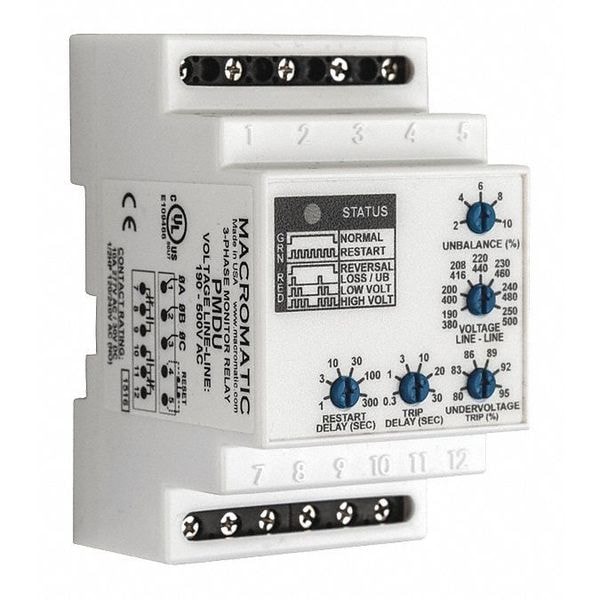

Macromatic 3 Phase Monitor Relay, DPDT, 500VAC, 0 Pin PMDU - main

3 Phase Monitor Relay, DPDT, 500VAC, 0 Pin

  • Mfr # PMDU

  • Zoro # G1803527

product price: $156.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
190 to 500V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V
Number of Pins - Relay
12
Mounting - Relay
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PMDU
Zoro #
G1803527
UPC #
801262035010
Country of Origin
United States

Dimensions

Body Depth - Relay
2.2 in
Body Height - Relay
3.5 in
Overall Height - Relay
2.4 in
Body Width - Relay
2.1 in
Overall Depth
2.4 in
Body Width
2.1 in
Body Height
3.5 in
Body Depth
2.4 in

Details

Item
Phase Monitor Relay
Input or Control Voltage
190 to 500V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
10A @ 30V
Number of Pins - Relay
12
Mounting - Relay
DIN Rail
Contact Form - Relay
DPDT
Over Voltage
Fixed 110% of Line Voltage Setting
Under Voltage
171 to 450V AC
Phase Loss Sensitivity
Yes
Phase Loss Time Delay
0.1 sec
Phase Reversal
Yes
Phase Reversal Time Delay
0.1 sec
Phase Unbalance
2 to 10%
Phase Unbalance Time Delay
0.3 to 30.0 sec
Restart
Auto, Manual
Restart Time Delay
1 to 300 sec
Contact Form
DPDT
Drop-Out Range
80% to 95%
Phase
3
Contact Amp Rating (Resistive)
10A @ 480/600VAC, 20A @ 28VDC
Pins
0
Input Voltage
190 to 500V AC
Base Type
DIN Rail
Trip Delay
Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec.
Pick Up Range
190 to 500VAC
Number of Contacts
2
Item - Relay
Phase Monitor Relay
Input or Control Voltage Range
190 to 500VAC
Standards
CE Certified, cULus Listed
Undervoltage
190 to 500V AC
Mounting Style
DIN Rail
Power Consumption
40 VA
Contact Rating (DC)
10 A @ 30V
Maximum Switching Capacity
40 VA
Mechanical Operating Durability
10,000,000
Minimum Operating Temperature
-18.4 Degrees F
Frequency
50/60 Hz
Current Rating
10 A
Number of Pins
12
Maximum Operating Temperature
149 Degrees F
Maximum Switching Voltage
550V
Monitored Parameters
Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage
Overvoltage
Fixed 110% of Line Voltage Setting
Contact Rating (AC)
10 A @ 277V
For Use With
Sensors
Electrical Operating Durability
100,000
Minimum/Maximum Voltage
156-550V (PMDU); 77-152V (PMD120): 345-660V (PMD575), all 50/60Hz.+5%
Enclosure Style
Mounts on 35mm DIN rail or panel mounted, DIN-Rail
Life
Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Output
10A DPDT
Output Contacts
10A @ 277V AC/30V DC; 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 Pilot Duty, R300 (N.O.)
Protection
Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage
Temperature
-28°to 65°C (-18°to 149°F)
Configuration / Contact Rating
DPDT. 10A @ 277V AC/30V DC; 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.)
Reset
As standard, the PMD Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 4 and 5. Upon application of line voltage, the PMD Series will go into Manual Reset mode if it recognizes a closure across terminals 4 and 5. After a fault clears, the relay will not reset until the N.C. switch is opened.
Load (Burden)
Less than 40 VA
Monitored Voltage
190-500V AC

Description

Phase Monitor Relay, Contact Form DPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Input Voltage 190 to 500V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 12, Restart Auto, Manual, Restart Time Delay 1 to 300 sec, Mounting Style DIN Rail, Body Depth 2.4 in, Body Height 3.5 in, Body Width 2.1 in, Electrical Operating Durability 100,000, For Use With Sensors, Frequency 50/60 Hz
