  13. 3 Phase Monitor Relay, SPDT, 240VAC, 8 Pin

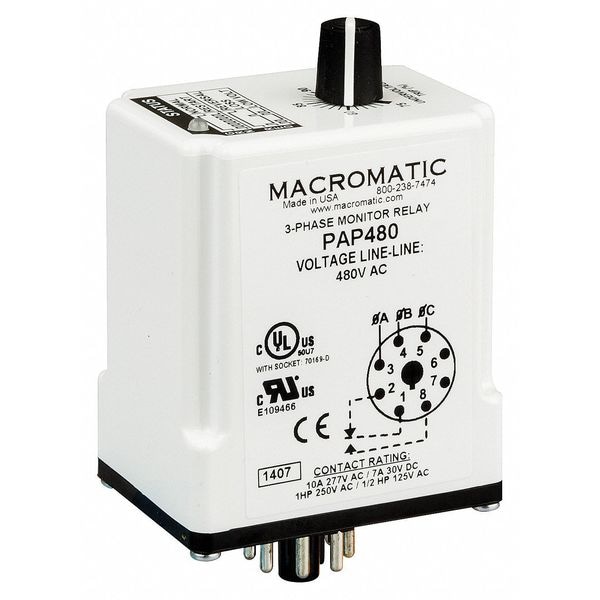

Macromatic 3 Phase Monitor Relay, SPDT, 240VAC, 8 Pin PAP240 - main

3 Phase Monitor Relay, SPDT, 240VAC, 8 Pin

  • Mfr # PAP240

  • Zoro # G2347782

product price: $67.15
/ea

Key Features

Input or Control Voltage
240V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PAP240
Zoro #
G2347782
UPC #
801262040120
Country of Origin
United States

Dimensions

Body Height - Relay
2.9 in
Body Width - Relay
1.7 in
Overall Height - Relay
3.5 in
Body Depth - Relay
2.4 in
Body Width
1.7 in
Overall Depth
2.4 in
Body Height
2.4 in
Body Depth
2.9 in

Details

Item
Phase Monitor Relay
Input or Control Voltage
240V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
8
Mounting - Relay
Plug In
Contact Form - Relay
SPDT
Over Voltage
No
Under Voltage
180 to 230V AC
Phase Loss Sensitivity
Yes
Phase Loss Time Delay
0.1 sec
Phase Reversal
Yes
Phase Reversal Time Delay
0.1 sec
Phase Unbalance
No
Restart
Auto
Restart Time Delay
1 sec
Item - Relay
Phase Monitor Relay
Phase
3
Input or Control Voltage Range
240VAC
Pick Up Range
180 to 230VAC
Contact Form
SPDT
Number of Contacts
1
Input Voltage
240V AC
Base Type
Octal
Power Rating
3
Trip Delay
Power Up and Restart After Fault Clear: 1 sec., Drop-Out Due to Fault: 100 msec., Phase Loss and Reversal: 4 sec., Undervoltage: 4 sec.
Socket
5X852
Drop-Out Range
75% to 95%
Pins
8
Contact Amp Rating (Resistive)
10
Standards
CE Certified, cULus Listed, cURus
Maximum Operating Temperature
149 Degrees F
Base Shape
Octal
Mechanical Operating Durability
10,000,000
Maximum Switching Voltage
230V
Undervoltage
180 to 230V AC
Contact Rating (DC)
7 A @ 30V
Frequency
50/60 Hz
Maximum Switching Capacity
40 VA
Overvoltage
Adjustable 75-95% of the Line Voltage Setting
Power Consumption
40 VA
For Use With
Sensors
Number of Pins
8
Socket Code
A
Current Rating
10 A
Contact Rating (AC)
10 A @ 277V
Electrical Operating Durability
100,000
Minimum Operating Temperature
-18.4 Degrees F
Mounting Style
Plug-In
Monitored Parameters
Phase Loss, Phase Reversal, Undervoltage
Reset
Automatic upon correction of fault.
Configuration / Contact Rating
SPDT/DPDT. 10A @ 277V AC / 7A @ 30V DC /5A@ 277V AC / 5A @ 30V DC
Output
10A SPDT
Monitored Voltage
240V AC
Life
Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Enclosure Style
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets, Plug-in
Output Contacts
10A @ 277V AC / 7A @ 30V DC;DPDT 5A @ 277V AC, 5A@30V DC,1/3HP @ 120/240V AC, B300 Pilot Duty
Minimum/Maximum Voltage
156-198V (PAP208); 180-230V (PAP240); 330-380V (PAP400); 360-460V (PAP480); 431-546V (PAP575), all 50/60Hz. ±5%
Temperature
-28°to 65°C (-18°to 149°F)
Protection
Phase Loss, Phase Reversal & Undervoltage
Load (Burden)
Less than 40 VA

Description

Phase Monitor Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 7 A @ 30V, Current Rating 10 A, Input Voltage 240V AC, Monitored Parameters Phase Loss, Phase Reversal, Undervoltage, Number of Pins 8, Restart Auto, Restart Time Delay 1 sec, Mounting Style Plug-In, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, For Use With Sensors, Frequency 50/60 Hz, Maximum Operating Temperature 149 Degrees F
