  13. Multifunction Time Delay Relay, Square, Multi Function, 10 Functions 12 to 240V AC/DC, SPDT

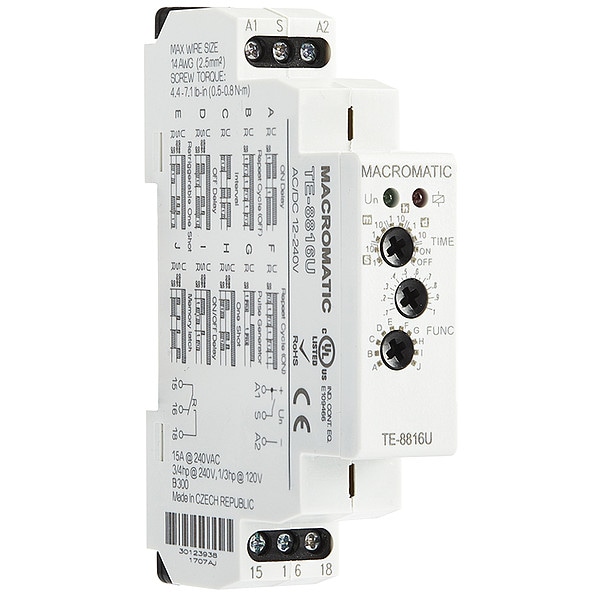

Macromatic Multifunction Time Delay Relay, Square, Multi Function, 10 Functions 12 to 240V AC/DC, SPDT TE-8816U - main

CAD Viewer & Download Files

Multifunction Time Delay Relay, Square, Multi Function, 10 Functions 12 to 240V AC/DC, SPDT

  • Mfr # TE-8816U

  • Zoro # G6094697

CAD Available
product price: $57.99
/ea

Key Features

CAD Drawing
Delay Function
Multi Function
Number of Delay Functions
10
Minimum Time Setting
0.1 sec
Maximum Time Setting
10 days
Base Shape
Square
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TE-8816U
Zoro #
G6094697
UPC #
801262084735
Country of Origin
Czechia

Dimensions

Overall Height - Relay
3.55 in
Body Depth
2.52 in
Body Height
3.55 in
Overall Depth
3.5 in
Body Width
0.69 in

Details

Item
Multifunction Time Delay Relay
Delay Function
Multi Function
Number of Delay Functions
10
Minimum Time Setting
0.1 sec
Maximum Time Setting
10 days
Base Shape
Square
Number of Pins
6
Coil Voltage
12 to 240V AC/DC
Current Rating
15 A
Contact Form
SPDT
Contact Rating (AC)
15 A @ 240V
Contact Amp Rating (Resistive)
15A
Adjustment Method
Potentiometer
Status Indicator
LED
Standards
CE Certified, UL Listed
Operating Functions
1, 2, 4, 6, 9, 11
Contact Material
Silver Alloy
Number of Functions
10
Coil Rating
3VA
Electrical Connection
Screw Clamp
Input Voltage
12 to 240V AC/DC
Electrical Operating Durability
70,000
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
131 Degrees F
Power Consumption
1.7 W, 3 VA
Minimum Operating Temperature
-4 Degrees F
Frequency
50/60 Hz
Adjustment Interface
Analog
Maximum Switching Voltage
240V AC/DC
Reset Method
Time-Limit Reset
IP Rating
IP20
Sealing
Enclosed
Mounting Style
DIN Rail
Timing Range
Multi-range (8): 0.1 seconds - 10 days
Repeat Accuracy (Constant Voltage & Temperature)
0.002
Load (Burden)
3VA (AC), 1.7W (DC)
Life
Mechanical: 10,000,000 operations; Full Load: 70,000 operations
Reset Time
0.150 Seconds
Output Contacts
15A @ 240V AC, 1/3HP @ 120V AC, 3/4HP @ 240V AC, B300
Timing Adjustment
Analog
Mount
17.5mm DIN-Rail
Voltage Tolerance
-15% of 12V, +10% of 240V
Indicator LED
Green-Input Voltage; Red (Flashing)-Timing or Red (Steady)-Relay ON
Temperature
-20°to 55°C (-4°to 131°F)
Control Voltage
Universal: 12 - 240V AC/DC
CAD Available
Yes

Description

Multi-Function Time Delay Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 12 to 240V AC/DC, Contact Form SPDT, Contact Rating (AC) 15 A @ 240V, Contact Rating (DC) Not Applicable, Current Rating 15 A, Number of Delay Functions 10, Delay Function Multi Function, Electrical Connection Screw Clamp, IP Rating IP20, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 10 day, Number of Pins 6, Sealing Enclosed, Mounting Style DIN Rail
