  11. Percentage Cycle Timer, 10A, 3-1/2" W

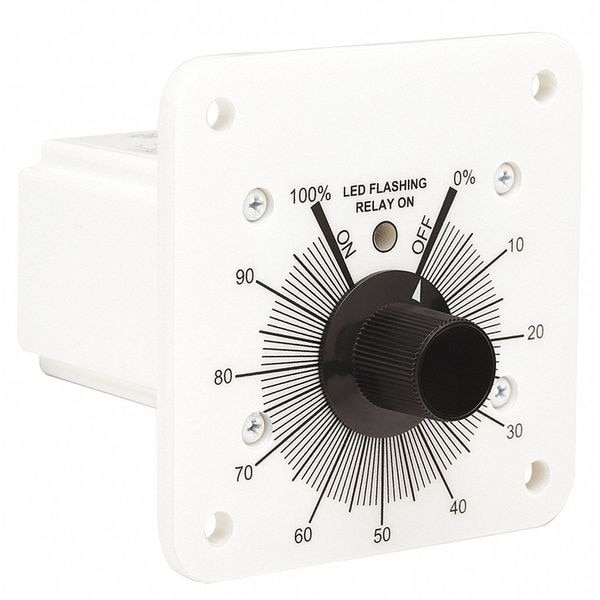

Macromatic Percentage Cycle Timer, 10A, 3-1/2" W PTA2001MB - main

Percentage Cycle Timer, 10A, 3-1/2" W

  • Mfr # PTA2001MB

  • Zoro # G6536953

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Max. Time Setting
1 min
Min. Time Setting
0.06 sec
NEMA Rating
1
Contact Form
SPST-NO
Amps
10 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PTA2001MB
Zoro #
G6536953
UPC #
801262087460
Country of Origin
United States

Dimensions

Depth
4.11 in
Width
3 1/2 in
Overall Width
3 1/2 in
Overall Height
3 1/2 in
Overall Depth
4 1/8 in

Details

Item
Electromechanical Cycle Timer
Max. Time Setting
1 min
Min. Time Setting
0.06 sec
NEMA Rating
1
Contact Form
SPST-NO
Amps
10 A
HP @ 120V
1/4 hp
Number of Poles
1
Mounting
Surface
Output
10A SPNO
Features
LED Indicates Relay Status, Retains Timing Sequence in the Event of Power Loss, Pressure Plate Terminal Block, Terminal Block Design
Standards
CE, cULus E109466
Product Type
Cycle Timer
Timing Range
1 minute
Configuration / Contact Rating
SPNO. 10A @ 240VAC / 7A @ 28V DC SPNO, 1/4HP@ 120V AC
Indicator LED
LED remains on steady during relay OFF time, LED blinks during relay ON time
Voltage Tolerance
AC Operation: +10/-15% of nominal at 50/60 Hz.
Life
Mechanical: 10,000,000 operations; Full Load: 100,000 operations
Enclosure Style
Panel mount with supplied hardware
Control Voltage
120V AC
Function
Memory disabled
Output Contacts
10A @ 240VAC / 7A @ 28V DC SPNO, 1/4HP @ 120V AC
Load (Burden)
Maximum of 2 VA for all voltages
Repeat Accuracy (Constant Voltage and Temperature)
+0.1% or+0.04 seconds, whichever is greater
Reset Time
300ms
Temperature
-28°to 65°C (-18°to 149°F)
Series
PTA
Compatible Lighting
LED
Operating Temperature - Maximum
149 Degrees F
On/Off Cycles - Maximum
60
Time Setting - Minimum
15 sec
Time Setting - Maximum
1 hr
Number of Trippers - Maximum
120
AC Voltage Rating
120V AC
Horsepower @ 120V - Maximum
1/4 hp
Number of Trippers Included
10
Operating Temperature - Minimum
-18 Degrees F
Mounting Style
Panel
Current Rating - Maximum
10 A

Description

Electromechanical Cycle Timer, Number of Poles 1, Amps 10 A, NEMA Rating 1, Min. Time Setting 0.06 sec, Max. Time Setting 1 min, Width 3 1/2 in, Depth 4.11 in, Number of Trippers Included 10, Standards CE, cULus E109466
