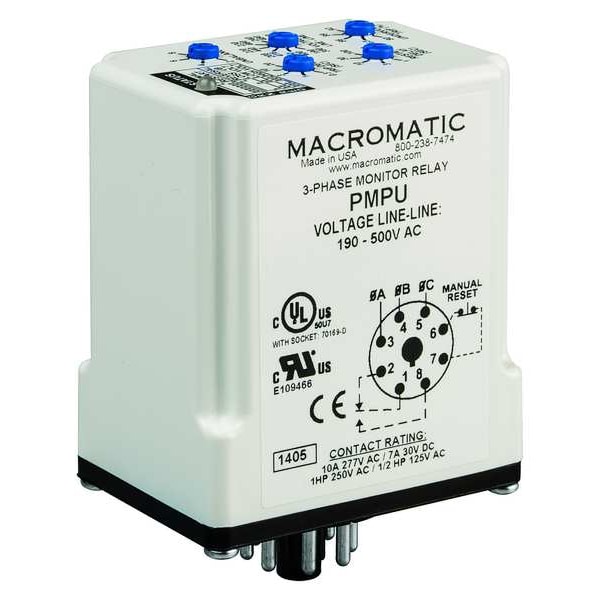

Phase Monitor Relay, 8 Pin Octal, 3 Phase, SPDT, 190-250V Low Voltage, 380-500V High Voltage

  • Mfr # PMPU

  • Zoro # G1452227

product price:
$
102.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
190 to 500V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
8
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PMPU
Zoro #
G1452227
UPC #
801262084094
Country of Origin
United States

Dimensions

Body Width - Relay
1.7 in
Overall Height - Relay
3.0 in
Body Height - Relay
2.9 in
Body Depth - Relay
2.4 in
Overall Depth
2.4 in
Body Depth
2.9 in
Body Height
2.4 in
Body Width
1.7 in

Details

Item
Phase Monitor Relay
Input or Control Voltage
190 to 500V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
8
Mounting - Relay
Plug In
Contact Form - Relay
SPDT
Over Voltage
Fixed 110% of Line Voltage Setting
Under Voltage
171 to 450V AC
Phase Loss Sensitivity
Yes
Phase Loss Time Delay
0.1 sec
Phase Reversal
Yes
Phase Reversal Time Delay
0.1 sec
Phase Unbalance
2 to 10%
Phase Unbalance Time Delay
0.3 to 30.0 sec
Restart
Auto, Manual
Restart Time Delay
1 to 300 sec
Phase
3
Contact Amp Rating (Resistive)
10
Socket
5X852
Input or Control Voltage Range
190 to 500VAC
Pick Up Range
190 to 500VAC
Trip Delay
Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec.
Pins
8
Input Voltage
190 to 500V AC
Contact Form
SPDT
Number of Contacts
1
Voltage Unbalance
2 to 10
Drop-Out Range
75% to 95%
Power Rating
3
Base Type
Octal
Item - Relay
Phase Monitor Relay
Standards
CE Certified, cULus Listed, cURus
Maximum Switching Voltage
550V
Frequency
50/60 Hz
Electrical Operating Durability
100,000
Power Consumption
40 VA
Overvoltage
Fixed 110% of Line Voltage Setting
Socket Code
A
Contact Rating (AC)
10 A @ 277V
Mechanical Operating Durability
10,000,000
Monitored Parameters
Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage
Minimum Operating Temperature
-18.4 Degrees F
Maximum Operating Temperature
149 Degrees F
Maximum Switching Capacity
40 VA
Base Shape
Octal
Mounting Style
Plug-In
Number of Pins
8
Contact Rating (DC)
7 A @ 30V
Undervoltage
460 to 600V AC
Current Rating
10 A
For Use With
Sensors
Standard Modifications
Adjustable Trip Points & Time Delays;
Enclosure Style
Plug-in, Plug-in case utilizing industry-standard 8 pin octal sockets
Life
Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Temperature
-28°to 65°C (-18°to 149°F)
Output Contacts
10A @ 277V AC / 7A @ 30V DC;
Output
10A SPDT
Monitored Voltage
190-500V AC
Load (Burden)
Less than 40 VA
Reset
As standard, the PMP Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 6 and 7. Upon application of line voltage, the PMP Series will go into Manual Reset mode if it recognizes a closure across terminals 6 and 7. After a fault clears, the relay will not reset until the N.C. switch is opened.
Protection
Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage
Minimum/Maximum Voltage
156-550V (PMPU); 77-152V (PMP120): 345-660V (PMP575), 50-60Hz.±5%
Configuration / Contact Rating
SPDT. 10A @ 277V AC / 7A @ 30V DC

Description

Phase Monitor Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 7 A @ 30V, Current Rating 10 A, Input Voltage 190 to 500V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 8, Restart Auto, Manual, Restart Time Delay 1 to 300 sec, Mounting Style Plug-In, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, For Use With Sensors
