  13. Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 24V AC/DC, DPDT

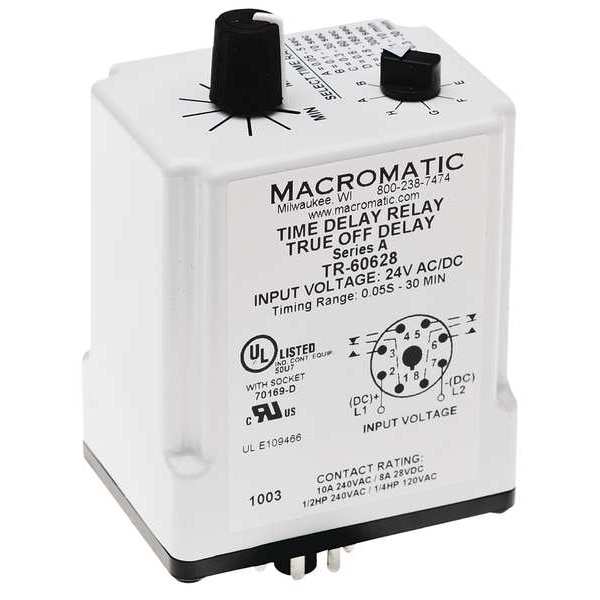

Macromatic Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 24V AC/DC, DPDT TR-60628 - main

CAD Viewer & Download Files

Single Function Time Delay Relay, Octal, Off Delay, 1 Functions 24V AC/DC, DPDT

  • Mfr # TR-60628

  • Zoro # G2429987

CAD Available
product price: $86.89
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
30 min
Base Shape
Octal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TR-60628
Zoro #
G2429987
UPC #
801262055483
Country of Origin
United States

Dimensions

Overall Height - Relay
3.1 in
Body Height
1.7 in
Body Depth
2.9 in
Body Width
2.3 in
Overall Depth
3.5 in

Details

Item
Single Function Time Delay Relay
Delay Function
Off Delay
Number of Delay Functions
1
Minimum Time Setting
0.05 sec
Maximum Time Setting
30 min
Base Shape
Octal
Number of Pins
8
Coil Voltage
24V AC/DC
Current Rating
10 A
Contact Form
DPDT
Contact Rating (AC)
10 A @ 240V AC
Contact Rating (DC)
8 A @ 28V
Operating Functions
10
Contact Amp Rating (Resistive)
10A
Contact Material
Silver Nickel
Coil Rating
2VA
Electrical Connection
Socket
Status Indicator
None
Adjustment Method
Rotary Switch
Standards
CE Certified, UL Listed
Socket Code
A
Socket
1EGP3, 1EGP5, 5X852
Input Voltage
24V AC/DC
Reset Method
Time-Limit Reset
Mechanical Operating Durability
2,000,000
Mounting Style
Plug-In
Maximum Operating Temperature
149 Degrees F
Sealing
Enclosed
IP Rating
IP20
Frequency
50/60 Hz
Adjustment Interface
Analog
Power Consumption
2 VA
Minimum Operating Temperature
-18 Degrees F
Output Contacts
10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 & R300
Control Voltage
24V AC/DC
Reset Time
0.1 Seconds
Timing Adjustment
Analog
Repeat Accuracy (Constant Voltage & Temperature)
+1% or 50ms, whichever is greater
Setting Accuracy
Maximum Setting (Adjustable): +5%, -0%; Minimum Setting (Adjustable): +0%, -50%.
Load (Burden)
2 VA
Mount
Plug-in
Timing Range
Multi-range (8): 0.05 seconds - 30 minutes
Temperature
-28°to 65°C (-18°to 149°F)
Voltage Tolerance
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
Life
Mechanical: 2,000,000 operations; Full Load: 100,000 operations
Enclosure Style
Plug-in case utilizing industry-standard 8 pin octal sockets
Compatible Grainger Part Number
1EGP3, 1EGP5, 5X852
CAD Available
Yes

Description

Single Function Time Delay Relay, Adjustment Method Rotary Switch, Base Shape Octal, Coil Voltage 24V AC/DC, Contact Form DPDT, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 8 A @ 28V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Off Delay, Electrical Connection Socket, Flat Pin Width Not Applicable, IP Rating IP20, Input Voltage 24V AC/DC, Minimum Time Setting 0.05 sec, Maximum Time Setting 30 min, Number of Pins 8, Sealing Enclosed, Mounting Style Plug-In
