Shop MACROMATIC

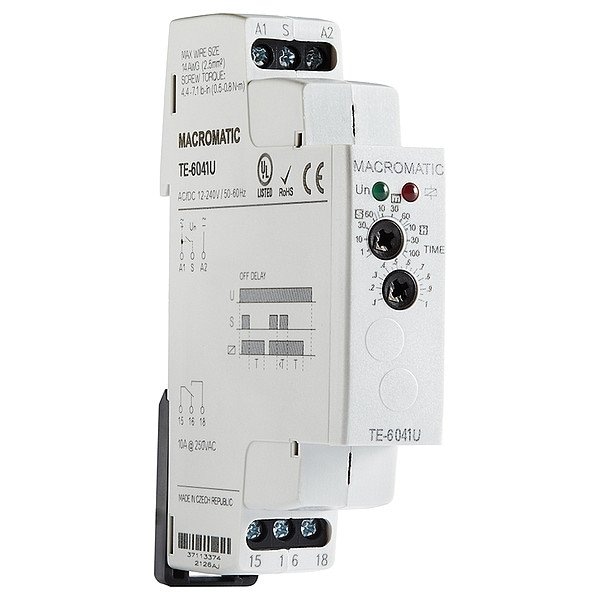

Time Delay Relay, Square, Star-Delta, 1 Functions 12 to 240V AC/DC, SPDT

  • Mfr # TE-6041U-G
  • Zoro # G108377698
product price:
$
78.29
/ea

Key Features

Delay Function
Star-Delta
Number of Delay Functions
1
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
TE-6041U-G
Zoro #
G108377698
UPC #
-
Country of Origin
Czechia
Item
Time Delay Relay
Delay Function
Star-Delta
Number of Delay Functions
1
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 hr
Base Shape
Square
Number of Pins
6
Coil Voltage
12 to 240V AC/DC
Current Rating
10 A
Contact Form
SPDT
Contact Rating (AC)
10 A @ 250V AC
Adjustment Method
Potentiometer
Contact Material
Silver Alloy
Input Voltage
12 to 240V AC/DC
Series
TE-6 Series
Electrical Connection
Screw
Mounting Style
DIN Rail
Frequency
50/60 Hz
Voltage Tolerance
-15% of 12V, +10% of 240V
Timing Adjustment
Analog
Indicator LED
Green - Control Voltage; Red - Timing or Relay ON
Timing Range 2
0.1 - 10 seconds
Temperature
Storage,-30°to 70°C (-22°to 158°F); Operating, -20°to 55°C (-4°to 131°F)
Life
Mechanical - 10,000,000 operations; Electrical - 50,000
Mount
17.5mm DIN-Rail
Timing Range
Multi-range (8): 0.1 seconds - 10 days
Control Voltage
Universal: 24-240V AC and 12-48V DC
Repeat Accuracy (Constant Voltage & Temperature)
0.002
Enclosure Style
Compact 17.5mm enclosure mounts on 35mm DIN-rail
Reset Time
0.150 seconds maximum
Reset Method
Time-Limit Reset
Mechanical Operating Durability
10,000,000
Operating Time Accuracy
+/-0.2% Repeat Accuracy, 5% Setting Accuracy, Reset time 150ms max
Electrical Operating Durability
100,000
Adjustment Interface
Analog

Description

Time Delay Relay, Adjustment Method Potentiometer, Base Shape Square, Coil Voltage 12 to 240V AC/DC, Contact Form SPDT, Contact Rating (AC) 10 A @ 250V, Current Rating 10 A, Number of Delay Functions 1, Delay Function Star-Delta ON Delay, Electrical Connection Screw, Input Voltage 12 to 240V AC/DC, Minimum Time Setting 0.1 sec, Maximum Time Setting 100 hr, Number of Pins 6, Mounting Style DIN Rail, Adjustment Interface Analog, Body Depth 2.52 in, Body Height 3.55 in, Body Width 0.69 in
