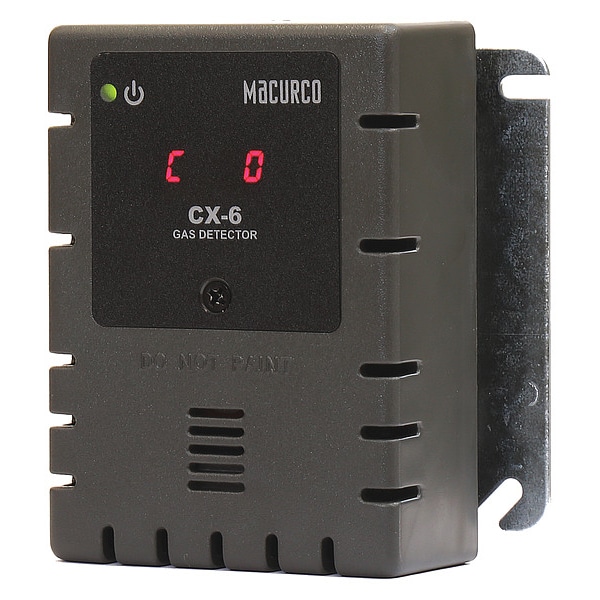

Macurco Fixed CO/NO2 Dual Detector CX-6 - main

Fixed CO/NO2 Dual Detector

  • Mfr # CX-6

  • Zoro # G2121739

product price: $1,063.99
/ea
Free Shipping & Returns

Key Features

For Use With
Macurco Control Panel
Gas Detected
Carbon Monoxide, Nitrogen Dioxide
Chemical Formula
CO, NO2
Features
0.5 A N.O. or N.C. Alarm Relay, 5 A SPDT Fan Control Relay, Selectable Fan and Alarm Relay Actuation Settings
Includes
Manual
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CX-6
Zoro #
G2121739
UPC #
857560007754
Country of Origin
United States

Dimensions

Manufacturer Warranty Length
4 to 5 yr
Overall Height
4.5 in
Overall Depth
4 in
Overall Width
2.12 in

Details

Item
Fixed Gas Detector
For Use With
Macurco Control Panel
Gas Detected
Carbon Monoxide, Nitrogen Dioxide
Chemical Formula
CO, NO2
Features
0.5 A N.O. or N.C. Alarm Relay, 5 A SPDT Fan Control Relay, Selectable Fan and Alarm Relay Actuation Settings
Includes
Manual
IP Rating
Not Rated
Status Indicator
LED
Standards
cETLus Certified
Interchangeable Sensors
Yes
Power Source
Hardwired
Housing Color
Gray/White
Product Type
Stand-Alone Detector & Controller
Number of Digits
4
For Environment
Hazardous Locations
Input Current
23 mA @ 24V DC (Standby), 50 mA @ 24V DC (Fan Relay), 75 mA @ 24V DC (Alarm)
Display Type
Digital
Coverage Area
7,500 sq ft
Alert Type
Internal Buzzer
Visual Alert Type
Digital Display
Series
Commercial Series
Number of Gases Detected
2
NEMA Enclosure Rating
Not Rated
Measurement Range
Carbon Monoxide (0 to 200 ppm), Nitrogen Dioxide (0 to 20 ppm)
Operating Humidity - Minimum
10 %
Sub-Brand
Macurco
Ties Into
Fire Alarm Panels
Market
Commercial
Output Type
Analog
Operating Humidity - Maximum
90 %
Operating Temperature - Minimum
-4 Degrees F
Output Current
4 to 20 mA
Operating Temperature - Maximum
122 Degrees F
Sensor Type
Electrochemical
Sensor Life
4 to 5 yr
Display Screen Type
LED
Mount Type
Bolts/Screws
Number of Relays
2
Alarm Setting Adjustment
Adjustable Alarm Setting
Voltage
12 to 24V AC, 12 to 32V DC
Operating Voltage
12 to 24V AC, 12 to 32V DC

Description

Fixed Gas Detector, For Use With Macurco Control Panel, Gas Detected Carbon Monoxide, Nitrogen Dioxide, Standards cETLus Certified, Includes Manual, Product Type Stand-Alone Detector & Controller, Mounting Location Wall, Number of Relays 2, Sensor Type Electrochemical, Visual Alert Type Digital Display, Display Type Digital, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 2, Coverage Area 7,500 sq ft
