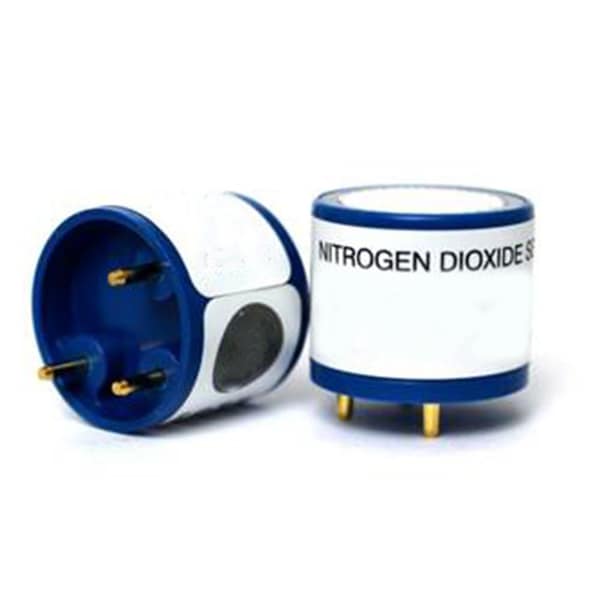

Replacement Sensor, Detects NO2

Name: Replacement Sensor, Detects NO2
Brand: Macurco
SKU: G102685621
Price: 162.99 USD
Availability: InStock

162.99

/ea

Free Shipping & Returns

Detects

Nitrogen Dioxide

Sensor Range

0 to 20 ppm

Resolution

0.1 ppm

Temp. Range

-18 Degrees to 52 Degrees C, 0 Degrees to 125 Degrees F

For Use With

Macurco CX-12, Macurco CX-6

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Gas Detector Sensor
Detects: Nitrogen Dioxide
Sensor Range: 0 to 20 ppm
Resolution: 0.1 ppm
Temp. Range: -18 Degrees to 52 Degrees C, 0 Degrees to 125 Degrees F
For Use With: Macurco CX-12, Macurco CX-6
Chemical Formula: NO2
Features: 4-20 mA Output to Control VFDs and Send to BMS, 5 A SPDT Fan Relay, 0.5A Alarm Relay to Control Fans, Valves, Louvers, Horn and Strobes, Install to A 4x4 Electrical Boxes Via Mud Plate, End of Life Notification, LED Display to Show Gas Concentrations, User Selectable Settings Via Two-Button Interface
Sensor Life: 2 yr
Sub-Brand: Macurco
For Detector Type: Fixed
Measurement Range: 0 to 20 ppm
Operating Temperature - Maximum: 122 Degrees F
T90 Response Time: 30 sec
Series: Commercial Series
Sensor Type: Electrochemical
Gas Detected: Nitrogen Dioxide
Compatible Detector Model/Series: CX-12, CX-6
Operating Temperature - Minimum: -22 Degrees F
Compatible Detector Manufacturer Part Number: CX-12, CX-6

Replacement Nitrogen Dioxide Sensor
