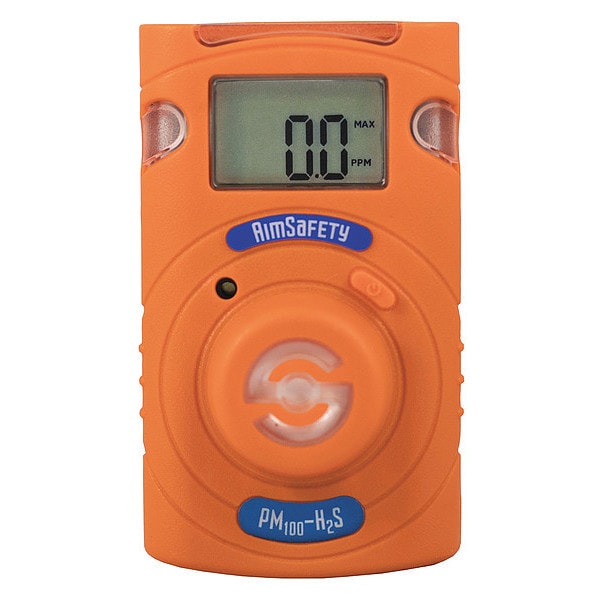

Single-Gas Detector, Audible, Vibrating, Visual, 2 yr Battery Life

  • Mfr # PM100-H2S

  • Zoro # G0940644


product price: $152.99
/ea
Free Shipping & Returns

Key Features

Gas Type
H2S
Operating Temp. Range
-40 Degrees to 120 Degrees F
Alarm Setting
Adjustable
Detects
hydrogen Sulfide
Standards
ATEX II 1G Ex ia IIC T4 Ga, Class 1 Division 1 and 2, Groups A,B,C & D, IECEX Ex ia IIC T4, INMETRO, UL-913 & CSA-C22.2 No.157
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PM100-H2S
Zoro #
G0940644
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Height
1 9/16 in
Width
1 59/64 in
Depth
3 11/32 in
Battery Size
3.6V
Overall Height
1.56 in
Overall Depth
3.34 in
Overall Width
1.92 in
Manufacturer Warranty Length
2 yr

Details

Item
Single-Gas Detector
Gas Type
H2S
Operating Temp. Range
-40 Degrees to 120 Degrees F
Alarm Setting
Adjustable
Detects
hydrogen Sulfide
Standards
ATEX II 1G Ex ia IIC T4 Ga, Class 1 Division 1 and 2, Groups A,B,C & D, IECEX Ex ia IIC T4, INMETRO, UL-913 & CSA-C22.2 No.157
Features
Event Logging, Single Button Operation, Visible Calibration Status
Housing Color
Orange
Resolution
0.1 ppm
Battery Life
2 yr
Alarm Type
Audible, Vibrating, Visual
Display
LCD
Battery Type
Lithium
Sensor Range
0 to 100 ppm
Interchangeable Sensors
No
Includes
Calibration Cap
Battery Chemistry
Lithium
Sensor Life
30 days
Operating Temperature - Minimum
-40 Degrees F
Alarm Volume Level
90 dB @ 4 in
Includes Probe
No
Measurement Range
0 to 100 ppm
Resistance Properties
Water Resistant
Alarm Setting Adjustment
Adjustable Alarm Setting
Operating Temperature - Maximum
122 Degrees F
Alert Type
Vibration
Data Logger
Yes
Operating Humidity - Minimum
5 %
IP Rating
IP67
Series
PM100
Hazardous Location Specification
Class I Divisions 1, 2 Groups A, B, C, D
Temperature Code
T4
Maintainability
Maintenance-Free
Replaceable Battery
No
For Environment
Hazardous Environments
Power Source
Battery
Number of Gases Detected
1
Chemical Formula
CO, H2, H2S, NH3, NO2, O2, SO2
Communication Protocol
PC-Compatible Interface, USB
Operating Humidity - Maximum
95 %

Description

Single-Gas Detector, Replaceable Battery No, Product Type Single-Gas Detector, Display Screen Type LCD, Includes Probe No, Housing Color Orange, Gas Detected Hydrogen Sulfide, Communication Protocol PC-Compatible Interface, USB, Series PM100, Sub-Brand AimSafety, Battery Size 3.6V, Operating Humidity - Maximum 95 Percent, Resistance Properties Water Resistant, Operating Humidity - Minimum 5 Percent, Temperature Code T4, Alarm Setting Adjustable, Alarm Volume Level 90 dB @ 4 in, Battery Life 2 yr

Restrictions

Hazardous material
