Shop MADISON

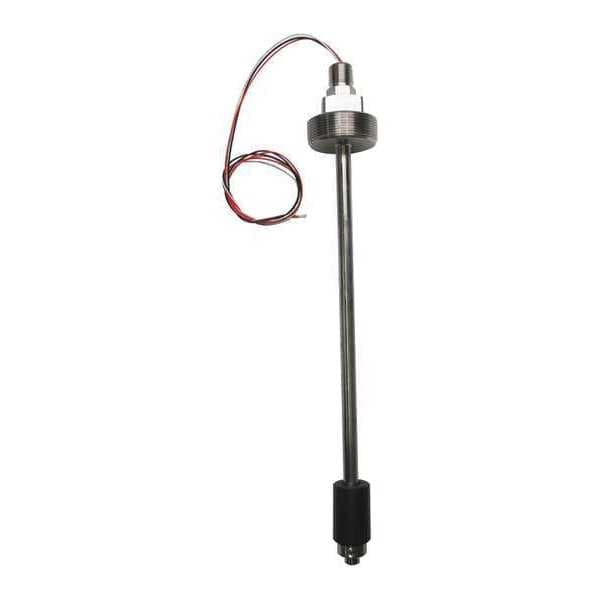

Continuous Level Transmitter, Stem 32" L

  • Mfr # C4651-12804

  • Zoro # G9887090

product price:  $634.99
/ea
Free Shipping & Returns

Key Features

Connection Type
NPT
Accuracy
+/-0.25 in
Connection Size
2 in
Standards
CE, cULus
Overall Length
34.25 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C4651-12804
Zoro #
G9887090
UPC #
-
Country of Origin
United States

Dimensions

Connection Size
2 in
Overall Length
34.25 in
Float Dia.
1 1/4 in
Stem Length
32 in
Float Length
1.94 in
Float Diameter
1.25 in
Wire Rope Length
34.25 in

Details

Item
Continuous Level Transmitter
Connection Type
NPT
Accuracy
+/-0.25 in
Standards
CE, cULus
Max. Pressure
150 psi
Float Material
Buna-N
Specific Gravity
0.4
Wire Gauge
22 AWG
Probe Material
316 Stainless Steel
Voltage
12 to 30V DC
Fitting
2 in NPT
Signal Output
4 to 20mA
Max. Temp.
221 Degrees F
Enclosure Rating
Not Rated
Stem Material
316 Stainless Steel
Body Material
316 Stainless Steel
Mounting
Vertical
Probe Style
Immersion
Product Type
Float Level Sensor
For Media Type
Chemicals, Nonhazardous Liquids
Number of Outputs - Analog
1
Specific Gravity - Maximum
0.4
Nameplate Voltage
12/30V DC
Range
29.4 in
Mounting Orientation
Vertical
Media Temperature - Maximum
221 Degrees F
Output Wire Configuration
2-Wire
Output Voltage Range
4 to 20mA
Operating Pressure - Maximum
150 psi

Description

Industrial Continuous Level Transmitter, Product Type Float Level Sensor, Connection Size 2 in, For Media Type Chemicals, Nonhazardous Liquids, Connection Type NPT, Body Material 316 Stainless Steel, Accuracy +/-0.25 in, Range 29.4 in, Stem Length 32 in, Operating Pressure - Maximum 150 psi, Media Temperature - Maximum 221 Degrees F, Mounting Orientation Vertical, Enclosure Rating Not Rated, Number of Outputs - Analog 1, Float Diameter 1 1/4 in, Number of Outputs - Digital Not Applicable
