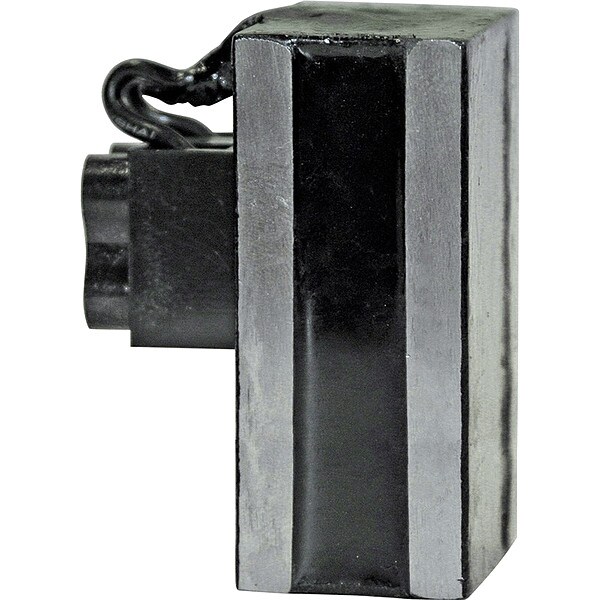

Electromagnetic Lift, 430 lb Load Cap.
Mfr # EP2-282
Zoro # G204845497
product price:Â $441.99
/ea
Free Shipping & Returns
Key Features
Overall Length
8 in
Overall Height
2 3/4 in
Voltage
24 V DC
Overall Width
2 in
Wattage
36 W
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- EP2-282
- Zoro #
- G204845497
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Length
- 8 in
- Overall Height
- 2 3/4 in
- Overall Width
- 2 in
- Mounting Hole Thread Size
- 5/16"-20
- Magnet Width
- 2 in
- Magnet Length
- 8 in
- Lead Length
- 24 in
- Magnet Height
- 2 3/4 in
Details
- Item
- Electromagnetic Lift
- Voltage
- 24 V DC
- Wattage
- 36 W
- Continuous Duty Maximum Operating Temperature
- 95 Degrees C
- Max. Lifting Capacity
- 430 lb
- Number of Mounting Holes
- 2
- Continuous Duty Minimum Operating Temperature
- 70 Degrees C
- Mounting Hole Center to Center
- 6 1/2 in
- Wiring Method
- Wire Lead
- Magnet Style
- Rectangular
- Continuous Duty
- Yes
- Maximum Operating Temperature
- 203 Degrees F
- Duty Type
- Continuous Duty
- Maximum Load Capacity
- 430 lb
- Minimum Operating Temperature
- 158 Degrees F
- Includes Lifting Eye
- Lifting Eye Not Included
Description
Electromagnetic Lift, Voltage 24 V DC, Wiring Method Wire Lead, Includes Lifting Eye Lifting Eye Not Included, Maximum Load Capacity 430 lb, Lead Length 24 in, Magnet Diameter Not Applicable, Magnet Length 8 in, Magnet Width 2 in, Magnet Height 2 3/4 in, Number of Mounting Holes 2, Duty Type Continuous Duty, Mounting Hole Thread Size 5/16 In.-20, Wattage 36 W, Minimum Operating Temperature 158 Degrees F, Maximum Operating Temperature 203 Degrees F, Mounting Hole Center to Center 6 1/2 in
Restrictions
Hazardous material
