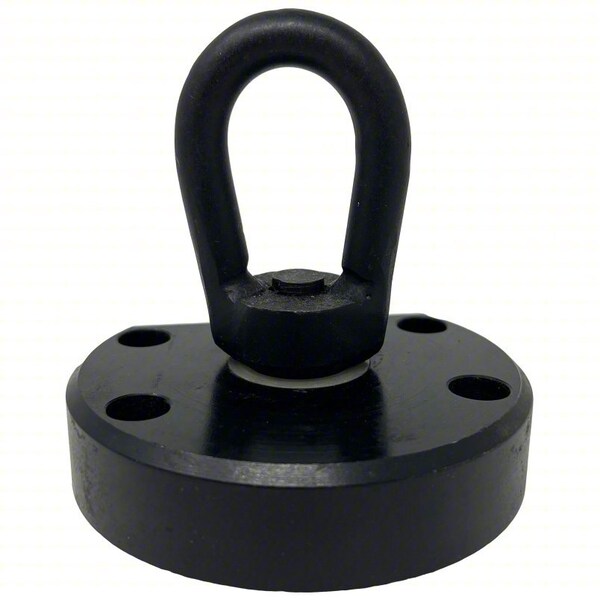

Lifting Lug, 4 3/4L x 4 3/8W x 3 5/8H in
Mfr # ALLUG1
Zoro # G806376535
product price:Â
$
67.95
/ea
Key Features
Max. Heat Resistant Temp.
180 Degrees F
Magnet Material
Rare Earth
Overall Length
4 3/4 in
Standards
ASME B30.20 BTH-1 Design Category B Service Class 3
Required Material Thickness for Max Rated Capacity
2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- ALLUG1
- Zoro #
- G806376535
- UPC #
- 682241354908
- Country of Origin
- China
Dimensions
- Overall Length
- 4 3/4 in
- Required Material Thickness for Max Rated Capacity
- 2 in
- Overall Height
- 3 5/8 in
- Bail Opening Width
- 1 1/2 in
- Bail Opening Height
- 1 7/8 in
- Overall Width
- 4 3/8 in
- Bail Inside Width
- 1 1/2 in
- Bail Thickness
- 1/2 in
- Bail Inside Length
- 1 7/8 in
- Wire Rope Length
- 4 3/4 in
- Length
- 4 3/4 in
Details
- Item
- Lifting Lug
- Max. Heat Resistant Temp.
- 180 Degrees F
- Magnet Material
- Rare Earth
- Standards
- ASME B30.20 BTH-1 Design Category B Service Class 3
- Product Type
- Lifting Lug
- Features
- Handle Moves Laterally, Lifts Flats Both Horizontally and Vertically with Vertical Lift Bail, Locking Lifting Bail(s) Prevent Accidental Load Release During Lift, Recessed Labels for Extended Life
- Compatible Product Type
- Below-the-Hook Lifting Magnets
- Material
- Rare Earth
Description
Lifting Lug, Overall Length 4 3/4 in, Overall Width 4 3/8 in, Overall Height 3 5/8 in, Bail Inside Width 1 1/2 in, Bail Inside Length 1 7/8 in, Material Rare Earth, Bail Thickness 1/2 in, Product Type Lifting Lug, Compatible Product Type Below-the-Hook Lifting Magnets, Features Handle Moves Laterally, Lifts Flats Both Horizontally and Vertically with Vertical Lift Bail, Locking Lifting Bail(s) Prevent Accidental Load Release During Lift, Recessed Labels for Extended Life
Restrictions
Hazardous material
