Mag-Mate

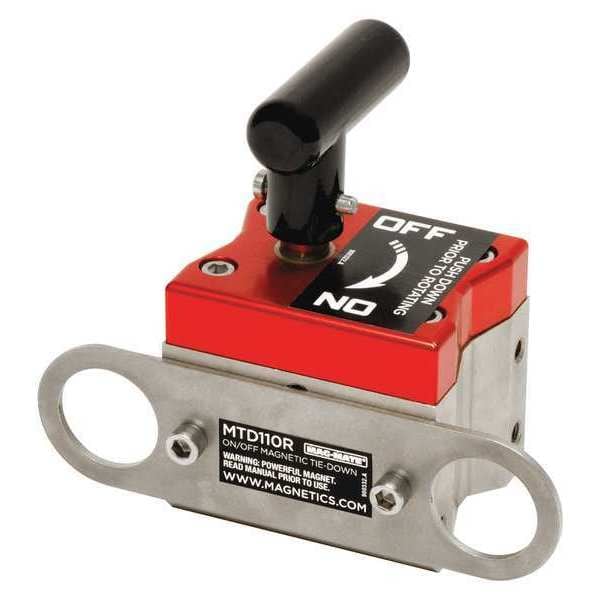

Magnetic Tie-Down, 4-3/4" H, 5-3/4" L

product price: $229.51
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Rated Flat Capacity 110 lb
  • Magnet Activation Locking On/Off Handle
  • Overall Height 4 3/4 in
  • Overall Length 5 3/4 in
  • Magnet Length 3 in
See all product information

Product Information

Dimensions

Overall Height 4 3/4 in
Overall Length 5 3/4 in
Magnet Length 3 in
Magnet Width 2 3/4 in
Handle Length 2 1/2 in
Magnet Height 2 3/4 in
Overall Width 2 3/4 in
Handle Length - Maximum 2 1/2 in
Loop Diameter 1 1/8 in

Details

Max. Rated Flat Capacity 110 lb
Item Magnetic Tie Down
Magnet Activation Locking On/Off Handle
Handle Type L-Handle
Footnotes These Magnets May Reach Substantially Higher Holding Values, But the Surface Condition of The Part May Affect The Magnets Performance Capabilities
Magnet Material Rare Earth
Max. Heat Resistant Temp. 180 Degrees F
Max. Rated Round Capacity 57 lb
Features Double Tie off Position
Product Type Magnetic Tie Down
Housing Material 304 Stainless Steel, Carbon Steel
Release Mechanism On/Off Handle
Maximum Load Capacity 110 lb
Minimum Operating Temperature -302 Degrees F
Maximum Operating Temperature 180 Degrees F

Description

Magnetic Tie Down, Product Type Magnetic Tie Down, Maximum Load Capacity 110 lb, Release Mechanism On/Off Handle, Magnet Length 3 in, Magnet Height 2 3/4 in, Magnet Width 2 3/4 in, Handle Type L-Handle, Loop Diameter 1 1/8 in, Handle Length - Maximum 2 1/2 in, Overall Length 5 3/4 in, Overall Width 2 3/4 in, Overall Height 4 3/4 in, Minimum Operating Temperature -302 Degrees F, Maximum Operating Temperature 180 Degrees F, Housing Material 304 Stainless Steel, Carbon Steel

Restrictions

  • Hazardous material
