Shop MAHR

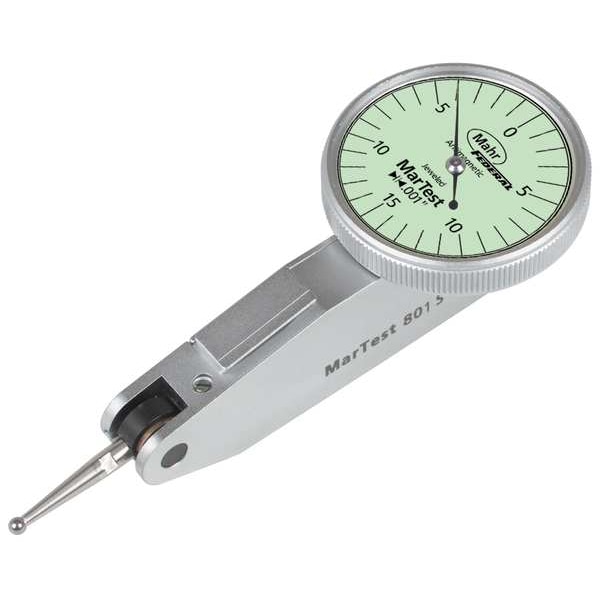

Dial Test Indicator, Swl Hd, 0 to 0.030 In

  • Mfr # 4305960

  • Zoro # G2244216

product price:
$
166.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.001 in
Range
0 in to 0.03 in
Features
Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed with O-Ring
Finish
Matt Chrome-Plated
Accuracy
0.0004 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4305960
Zoro #
G2244216
UPC #
712155480933
Country of Origin
Czechia
Graduations
0.001 in
Range
0 in to 0.03 in
Features
Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed with O-Ring
Finish
Matt Chrome-Plated
Accuracy
0.0004 in
Resolution
0.03"
Includes
3/8 in Mounting Stem, Spanner Wrench
Indicator Style
Swivel Head
Contact Point Style
Carbide Ball
Reading
Balanced
Bearing Type
Jeweled
Series
MarTest 801 S1
Dial Reading
15-0-15
Item
Horizontal Dial Test Indicator
Dial Color
Green
Range per Revolution
0.03 in
Standards
DIN 2270
Long Form Calibration Certificate
No
Repeatability
+/-0.0001 in
Maximum Measurement - Inch
0.03 in
Minimum Measurement - Inch
0 in
Contact Point Shape
Ball
Test Indicator Style
Horizontal
Case Type
Case
Number of Indicators
1
Max. Measuring Force
0.15 N
Swivel Angle
110 Degrees
Hysteresis
3.048 micronm
Operation Type
Lever-Style
Contact Point Material
Carbide
Included Certification
Certificate of Conformance
Non-Conductive Tip
No
Non-Magnetic Tip
Yes
Shock Resistant
Yes
Mounting Style
Dovetail
Includes Dovetail Mount Attachments
Yes
Includes Case
Yes
Product Type
Horizontal Dial Test Indicator
Inches Measured - Maximum
0.03 in
Inches Measured - Minimum
0 in
Maximum Measuring Force
0.15 N

Description

Item Horizontal Dial Test Indicator, Range 0 in to 0.03 in, Graduations 0.001 in, Long Form Calibration Certificate No, Contact Point Dia. 0.08 in, Dial Color Green, Dial Reading 15-0-15, Dial Size 1.5 in, Dimension Type Inch, Included Certification Certificate of Conformance, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.03 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Lever-Style, Range per Revolution 0.03 in, Series MarTest 801 S1
