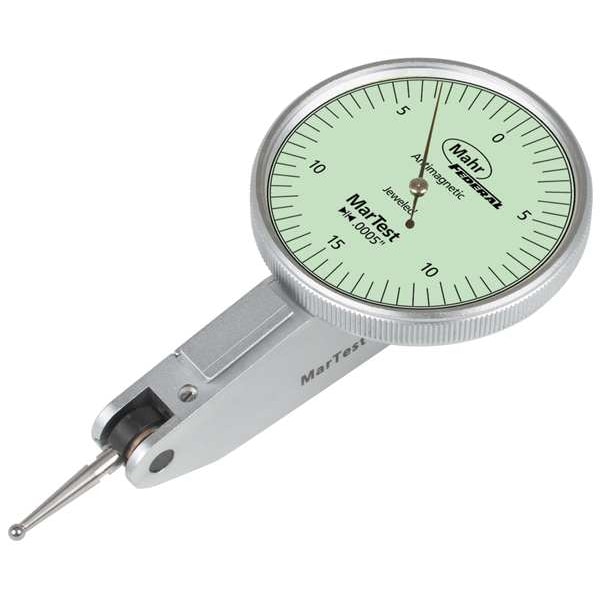

Dial Test Indicator, Swl Hd, 0 to 0.030 In

Mfr # 4307950
Zoro # G0432293

209.99

Free Shipping & Returns

Key Features

Graduations

0.0005 in

Range

0 in to 0.03 in

Features

Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed with O-Ring

Finish

Matt Chrome-Plated

Accuracy

0.0004 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 4307950
Zoro #: G0432293
UPC #: -
Country of Origin: Czechia

Dimensions

Contact Point Length: 1/2 in
Dial Size: 1.09 in
Contact Point Dia.: 0.08 in
Stem Thread Size: M6
Stylus Length: 14.5 mm
Dimension Type: Inch
Contact Point Diameter: 0.08 in

Details

Graduations: 0.0005 in
Range: 0 in to 0.03 in
Features: Shockproof; Anti Magnetic; Automatic Matching to Sense Direction; Dial Face is Sealed with O-Ring
Finish: Matt Chrome-Plated
Accuracy: 0.0004 in
Resolution: 0.03"
Includes: 3/8 in Mounting Stem, Spanner Wrench
Indicator Style: Swivel Head
Contact Point Style: Carbide Ball
Reading: Balanced
Bearing Type: Jeweled
Series: MarTest 801 SG
Dial Reading: 15-0-15
Standards: DIN 2270
Item: Horizontal Dial Test Indicator
Dial Color: Green
Range per Revolution: 0.03 in
Long Form Calibration Certificate: No
Minimum Measurement - Inch: 0 in
Max. Measuring Force: 0.15 N
Contact Point Material: Carbide
Test Indicator Style: Horizontal
Included Certification: Certificate of Conformance
Shock Resistant: Yes
Operation Type: Lever-Style
Number of Indicators: 1
Case Type: Case
Maximum Measurement - Inch: 0.03 in
Includes Dovetail Mount Attachments: Yes
Non-Magnetic Tip: Yes
Hysteresis: 3.048 micronm
Mounting Style: Dovetail
Repeatability: +/-0.0001 in
Non-Conductive Tip: No
Swivel Angle: 110 Degrees
Contact Point Shape: Ball
Includes Case: Yes
Product Type: Horizontal Dial Test Indicator
Inches Measured - Minimum: 0 in
Inches Measured - Maximum: 0.03 in
Maximum Measuring Force: 0.15 N

Description

Item Horizontal Dial Test Indicator, Range 0 in to 0.03 in, Graduations 0.0005 in, Long Form Calibration Certificate No, Contact Point Dia. 0.08 in, Dial Color Green, Dial Reading 15-0-15, Dial Size 1.09 in, Dimension Type Inch, Included Certification Certificate of Conformance, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.03 in, Minimum Measurement - Inch 0 in, Number of Indicators 1, Operation Type Lever-Style, Range per Revolution 0.03 in, Series MarTest 801 SG
