Shop MAHR

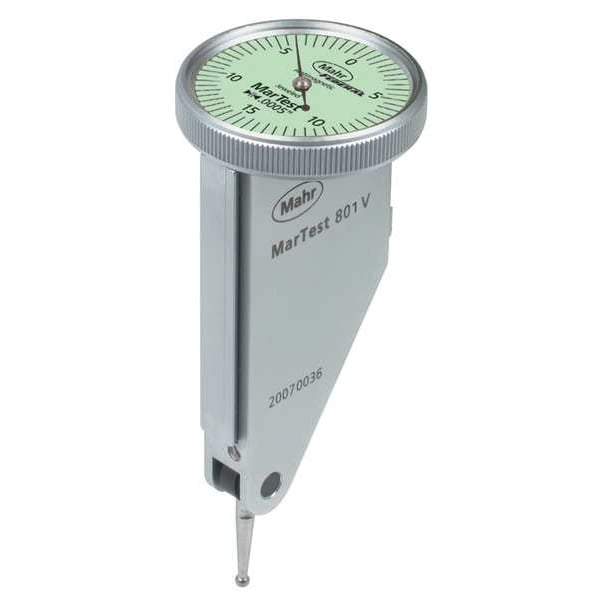

Dial Test Indicator, Vert, 0 to 0.030 In

  • Mfr # 4302950

  • Zoro # G3485657

product price:
$
214.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0005 in
Range
-0.015 in to 0.015 in
Features
Shockproof, Anti Magnetic, Automatic Matching to Sense Direction, Dial Face is Sealed w/O-Ring, Satin Chrome Finished Housing
Accuracy
0.0004 in
Includes
3/8 in Mounting Stem, Spanner Wrench
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4302950
Zoro #
G3485657
UPC #
712155481060
Country of Origin
Czechia
Graduations
0.0005 in
Range
-0.015 in to 0.015 in
Features
Shockproof, Anti Magnetic, Automatic Matching to Sense Direction, Dial Face is Sealed w/O-Ring, Satin Chrome Finished Housing
Accuracy
0.0004 in
Includes
3/8 in Mounting Stem, Spanner Wrench
Indicator Style
Vertical
Contact Point Style
Carbide Ball
Reading
Balanced
Bearing Type
Jeweled
Series
MarTest
Dial Reading
15-0-15
Dial Color
Green
Standards
DIN 2279
Range per Revolution
0.03 in
Item
Vertical Dial Test Indicator
Long Form Calibration Certificate
No
Contact Point Shape
Ball
Minimum Measurement - Inch
-0.015 in
Included Certification
Certificate of Conformance
Includes Dovetail Mount Attachments
Yes
Hysteresis
3.048 micronm
Maximum Measurement - Inch
0.015 in
Non-Magnetic Tip
Yes
Mounting Style
Dovetail
Shock Resistant
Yes
Contact Point Material
Carbide
Max. Measuring Force
0.2 N
Repeatability
+/-0.00012 in
Swivel Angle
110 Degrees
Operation Type
Lever-Style
Test Indicator Style
Vertical
Number of Indicators
1
Product Type
Vertical Dial Test Indicator
Inches Measured - Minimum
-0.015 in
Maximum Measuring Force
0.2 N
Inches Measured - Maximum
0.015 in

Description

Item Vertical Dial Test Indicator, Range -0.015 in to 0.015 in, Graduations 0.0005 in, Long Form Calibration Certificate No, Contact Point Dia. 2 mm, Dial Color Green, Dial Reading 15-0-15, Dial Size 1.09 in, Dimension Type Inch, Included Certification Certificate of Conformance, Includes Dovetail Mount Attachments Yes, Maximum Measurement - Inch 0.015 in, Minimum Measurement - Inch -0.015 in, Number of Indicators 1, Operation Type Lever-Style, Range per Revolution 0.03 in, Series MarTest
