  11. Digital Depth Gage, 0 to 4" Range

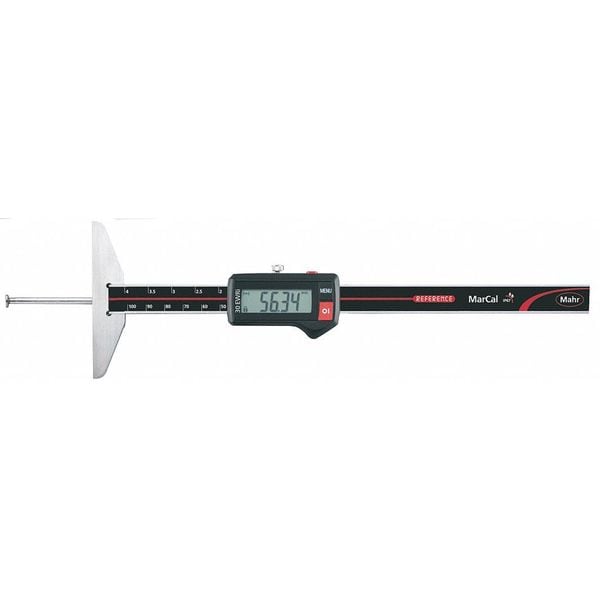

Mahr Digital Depth Gage, 0 to 4" Range 4126532 - main

Digital Depth Gage, 0 to 4" Range

  • Mfr # 4126532

  • Zoro # G5508233

product price: $1,058.99
/ea
Free Shipping & Returns

Key Features

SPC Output
Yes
Base Style
Flat
Range
0 in to 4 in, 0 to 100 mm
Resolution
0.0005 in/0.01 mm
Base Length
85 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4126532
Zoro #
G5508233
UPC #
-
Country of Origin
China

Dimensions

Base Length
85 mm
Depth Gauge Type
Blade-Style
Dimension Type
Inch/Metric
Blade Width
4 mm

Details

Item
Blade-Style Digital Depth Gauge
SPC Output
Yes
Base Style
Flat
Range
0 in to 4 in, 0 to 100 mm
Resolution
0.0005 in/0.01 mm
Number of Measuring Rods
0
Long Form Calibration Certificate
No
Features
Integrated Wireless, On/Off and Inch/mm, Immediate Measurement Due to The Reference System, Locking Screw, Dirt Wipers are Integrated In The Side, Excellent Resistance Against Dust, Coolants and Lubricants, High Contrast LCD with 8.5mm High Digits, Lapped Guide Way, Measuring Range Up to 100mm, Height of Digits 11mm
IP Rating
IP67
Anvil
Flat
Rotating Spindle (Yes/No)
No
Anvil Material
Hardened Steel
Number of Gauges
1
Spindle Material
Hardened Steel
Spindle
Flat
Lock Nut Type
Screw
Includes
Instruction Manual
Case Included
Yes
Includes Battery
Yes
Compatible Wireless Transmitter
MarConnect
Maximum Measurement - mm
100 mm
Included Certification
Certificate of Conformance
Data Output Type
Wireless
Coolant Resistant
Yes
Functions
Auto and Manual On/Off, DATA (Data Transmission), HOLD (Storage Of Measured Values), Inch/mm Conversion, Key Lock Function, Preset For Entering A Numerical Value, Reset: Set Display To Zero
Minimum Measurement - Inch
0 in
Accuracy
+/-0.03 mm
Minimum Measurement - mm
0 mm
Actuation Style
Slide
Operation Type
Digital
Blade Tip Shape
Flat
Blade Material
Stainless Steel
Maximum Measurement - Inch
4 in
Contact Point Shape
Flat
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
100 mm
Inches Measured - Maximum
4 in
Inches Measured - Minimum
0 in

Description

Digital Depth Gage, SPC Output Yes, Base Style Flat, Range 0 to 4 In., Resolution 0.0005 In., Base Length 4 In., Number of Measuring Rods 0, Long Form Calibration Certificate No, IP Rating 67, Anvil Flat, Spindle Flat, Number of Gauges 1, Rotating Spindle (Yes/No) No, Anvil Material Hardened Steel, Spindle Material Hardened Steel, Lock Nut Type Screw
