  11. Digital Depth Gage, 0 to 8" Range
This item is Discontinued.

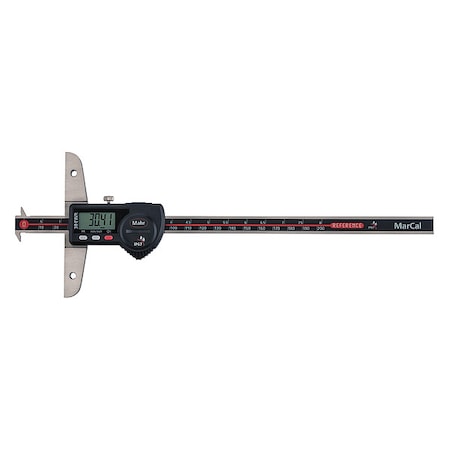

Mahr Digital Depth Gage, 0 to 8" Range 4126525

Digital Depth Gage, 0 to 8" Range (Discontinued)

  • Mfr # 4126525
  • Zoro # G5531537
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4126525
Zoro #
G5531537
UPC #
-
Country of Origin
China

Dimensions

Base Length
100 mm
Blade Width
4 mm
Depth Gauge Type
Blade-Style
Dimension Type
Inch/Metric

Details

Item
Blade-Style Digital Depth Gauge
SPC Output
Yes
Base Style
Flat
Range
0 in to 8 in, 0 mm to 200 mm
Resolution
0.0005 in/0.01 mm
Number of Measuring Rods
0
Long Form Calibration Certificate
No
IP Rating
IP67
Includes
Instruction Manual
Spindle Material
Hardened Steel
Features
On/Off and Inch/mm, Immediate Measurement Due to The Reference System, Locking Screw, Dirt Wipers are integrated In The Side, Excellent Resistance Against Dust, Coolants and Lubricants, High Contrast LCD with 8.5mm High Digits, Lapped Guide Way, Measuring Range Up to 200mm
Lock Nut Type
Screw
Rotating Spindle (Yes/No)
No
Spindle
Flat
Anvil
Flat
Number of Gauges
1
Anvil Material
Hardened Steel
Accuracy
+/-0.03 mm
Case Included
Yes
Maximum Measurement - mm
200 mm
Minimum Measurement - mm
0 mm
Data Output Type
Cable
Functions
Auto and Manual On/Off, Data Transmission Via Connection Cable, Inch/mm Conversion, Key Lock Function, Preset For Entering A Numerical Value, Reset: Set Display To Zero
Coolant Resistant
Yes
Blade Material
Stainless Steel
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Included Certification
Certificate of Conformance
Blade Tip Shape
Flat
Operation Type
Digital
Compatible Data Output Cable
Mfr. No. RS232C
Maximum Measurement - Inch
8 in
Actuation Style
Slide
Contact Point Shape
Flat
Inches Measured - Minimum
0 in
Inches Measured - Maximum
8 in
Millimeters Measured - Maximum
200 mm
Millimeters Measured - Minimum
0 mm

Description

Digital Depth Gage, SPC Output Yes, Base Style Flat, Range 0 to 8 In., Resolution 0.0005 In., Base Length 6 In., Number of Measuring Rods 0, Long Form Calibration Certificate No, IP Rating 67, Anvil Flat, Spindle Flat, Number of Gauges 1, Rotating Spindle (Yes/No) No, Anvil Material Hardened Steel, Spindle Material Hardened Steel, Lock Nut Type Screw
