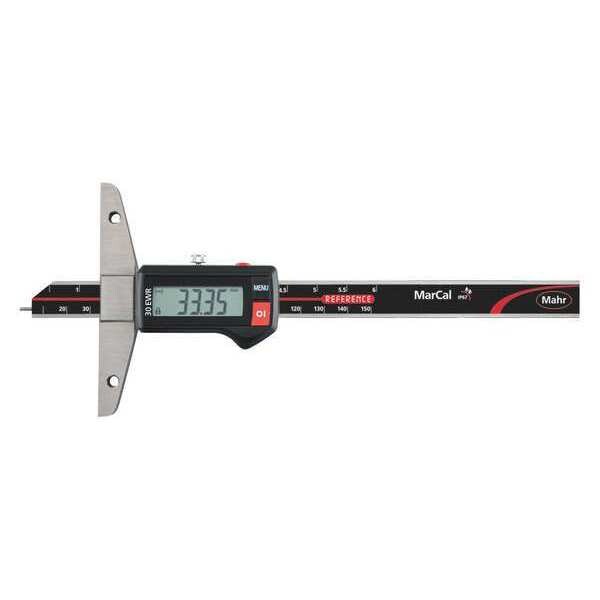

Mahr Digital Depth Gage, Wireless, 6 in. Range 4126755 - main

Digital Depth Gage, Wireless, 6 in. Range

  • Mfr # 4126755

  • Zoro # G2014385

product price: $529.99
/ea
Free Shipping & Returns

Key Features

SPC Output
Yes
Base Style
Half
Range
0 in to 6 in, 0 mm to 150 mm
Resolution
0.0005 in/0.01 mm
Base Length
100 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4126755
Zoro #
G2014385
UPC #
712155481466
Country of Origin
China

Dimensions

Base Length
100 mm
Rod Dia.
0.060 in
Rod Diameter
0.0600 in
Blade Width
4 mm
Dimension Type
Inch/Metric
Depth Gauge Type
Flat Rule

Details

Item
Blade-Style Digital Depth Gauge
SPC Output
Yes
Base Style
Half
Range
0 in to 6 in, 0 mm to 150 mm
Resolution
0.0005 in/0.01 mm
Number of Measuring Rods
0
Long Form Calibration Certificate
No
Thimble
Ratchet
IP Rating
IP67
Lock Nut Type
Thumb Screw
Movement of Screw
1 in
Anvil Material
Hardened Steel
Number of Gauges
0
Rotating Spindle (Yes/No)
No
Spindle Material
Hardened Steel
Includes
Instruction Manual
Rod Type
Interchangeable
Anvil
Round
Spindle
Flat
Features
On/Off and Inch/mm, Integrated Wireless and The Reference-System, Immediate Measurement Due to The Reference System, Excellent Resistance Against Dust, Coolants and Lubricants, High Contrast LCD with 8.5mm High Digits, Lapped Guide Way, Hardened Stainless Steel Beam and Cross Beam, Lock Function
Minimum Measurement - mm
0 mm
Contact Point Shape
Needle
Included Certification
Certificate of Conformance
Functions
Auto and Manual On/Off, DATA (Data Transmission), HOLD (Storage Of Measured Values), Inch/mm Conversion, Key Lock Function, Preset For Entering A Numerical Value, Reset: Set Display To Zero, Reversal Of Counting Direction
Accuracy
+/-0.03 mm
Compatible Wireless Transmitter
MarConnect
Includes Battery
Yes
Thimble Type
Ratchet
Actuation Style
Slide
Case Included
Yes
Maximum Measurement - mm
150 mm
Blade Tip Shape
Flat
Coolant Resistant
Yes
Maximum Measurement - Inch
6 in
Blade Material
Stainless Steel
Operation Type
Digital
Data Output Type
Wireless
Minimum Measurement - Inch
0 in
Inches Measured - Minimum
0 in
Millimeters Measured - Maximum
150 mm
Inches Measured - Maximum
6 in
Millimeters Measured - Minimum
0 mm

Description

Digital Depth Gage,Wireless,6 in. Range
