Shop MAHR

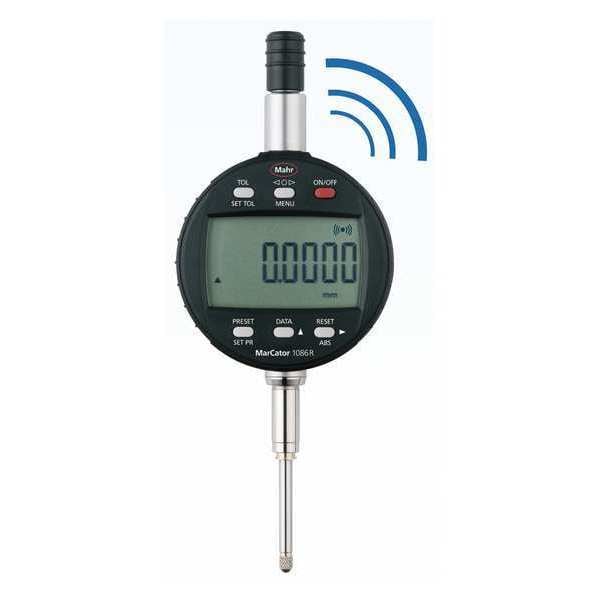

Digital Indicator, 1086 Ri, 0.00002 in.Res

  • Mfr # 4337625

  • Zoro # G2014358

product price:
$
738.99
/ea
Free Shipping & Returns

Key Features

Series
Series 1086 Ri
Range
0.00002 in to 1 in
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4337625
Zoro #
G2014358
UPC #
712155480667
Country of Origin
China

Dimensions

Contact Point Dia.
4 mm
Stem Dia.
8 mm
Dial Size
58 mm
Dimension Type
Inch/Metric
Battery Size
CR2450
Stem Thread Size
M2.5
Stem Diameter
8 mm
Contact Point Diameter
4 mm

Details

Item
Digital Indicator
Series
Series 1086 Ri
Range
0.00002 in to 1 in
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
Long Form Calibration Certificate
No
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Integrated Wireless Data Transmission, Immediate Measurement Due to The Reference System, Lock Function, Lifter Protection Cap On The Measuring Spindle, MarConnect Data Output, Polycarbonate Bezel
Includes
Battery
Minimum Measurement - mm
0.001 mm
Max. Measuring Force
0.65 N
SPC Output
Yes
IP Rating
IP42
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Back Type
Flat
Maximum Measurement - Inch
1 in
Display Type
LCD
Maximum Measurement - mm
25 mm
Operation Type
Plunger
Number of Indicators
1
Bezel Type
No
Data Output Type
Cabled, Wireless
Variable Resolution
Yes
Case Type
Box
Compatible Wireless Transmitter
Mahr Integrated
Contact Point Shape
Curved
Compatible Data Output Cable
4102357
Non-Magnetic
No
Included Certification
Certificate of Inspection
Includes Case
Yes
Body Color
Black
Inches Measured - Maximum
1 in
Bezel Lock
No
Millimeters Measured - Minimum
0.001 mm
Inches Measured - Minimum
0 in
Millimeters Measured - Maximum
25 mm
Maximum Measuring Force
0.65 N

Description

Digital Indicator, Series Series 1086 Ri, Resolution 0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in, Accuracy 0.002 mm, Range 0.00002 in to 1 in, Bezel Yes, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Integrated Wireless Data Transmission, Immediate Measurement Due to The Reference System, Lock Function, Lifter Protection Cap On The Measuring Spindle, MarConnect Data Output, Polycarbonate Bezel
