  13. Digital Indicator, 1086 Ri, 0.5 in. Range
Mahr Digital Indicator, 1086 Ri, 0.5 in. Range 4337624 - main

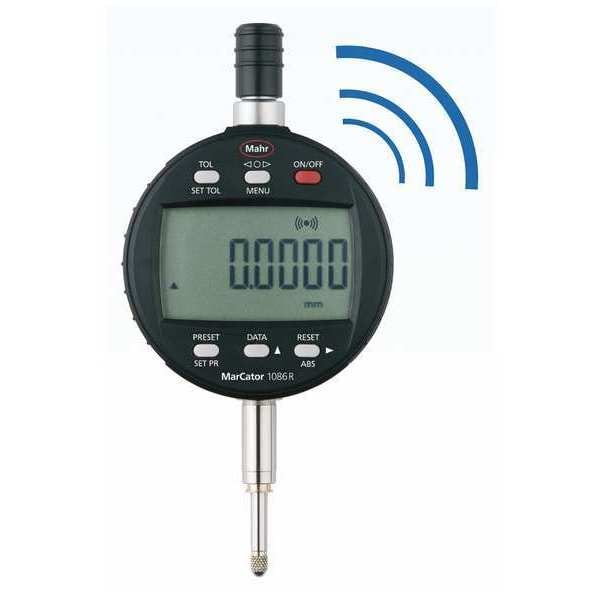

Digital Indicator, 1086 Ri, 0.5 in. Range

  • Mfr # 4337624

  • Zoro # G2014367

product price: $639.99
/ea
Free Shipping & Returns

Key Features

Series
Series 1086 Ri
Range
0.00002 in to 0.5 in
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4337624
Zoro #
G2014367
UPC #
712155480650
Country of Origin
China

Dimensions

Dimension Type
Inch/Metric
Dial Size
58 mm
Contact Point Dia.
4 mm
Stem Dia.
8 mm
Battery Size
CR2450
Stem Thread Size
M2.5
Stem Diameter
8 mm
Contact Point Diameter
4 mm

Details

Item
Digital Indicator
Series
Series 1086 Ri
Range
0.00002 in to 0.5 in
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
Long Form Calibration Certificate
No
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Integrated Wireless Data Transmission, Immediate Measurement Due to The Reference System, Lock Function, Lifter Protection Cap On The Measuring Spindle, MarConnect Data Output, Polycarbonate Bezel
Includes
Battery
Maximum Measurement - mm
12.7 mm
Maximum Measurement - Inch
0.5 in
Minimum Measurement - Inch
0.00002 in
Max. Measuring Force
0.65 N
IP Rating
IP42
SPC Output
Yes
Minimum Measurement - mm
0.001 mm
Back Type
Flat
Display Type
LCD
Includes Battery
Yes
Operation Type
Plunger
Number of Indicators
1
Data Output Type
Cabled, Wireless
Compatible Wireless Transmitter
Mahr Integrated
Contact Point Shape
Curved
Included Certification
Certificate of Inspection
Bezel Type
No
Variable Resolution
Yes
Compatible Data Output Cable
4102357
Non-Magnetic
No
Case Type
Box
Includes Case
Yes
Inches Measured - Minimum
0.00002 in
Millimeters Measured - Minimum
0.001 mm
Body Color
Black
Millimeters Measured - Maximum
12.7 mm
Maximum Measuring Force
0.65 N
Bezel Lock
No
Inches Measured - Maximum
0.5 in

Description

Digital Indicator, Series Series 1086 Ri, Resolution 0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in, Accuracy 0.002 mm, Range 0.00002 in to 0.5 in, Bezel Yes, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Integrated Wireless Data Transmission, Immediate Measurement Due to The Reference System, Lock Function, Lifter Protection Cap On The Measuring Spindle, MarConnect Data Output, Polycarbonate Bezel
