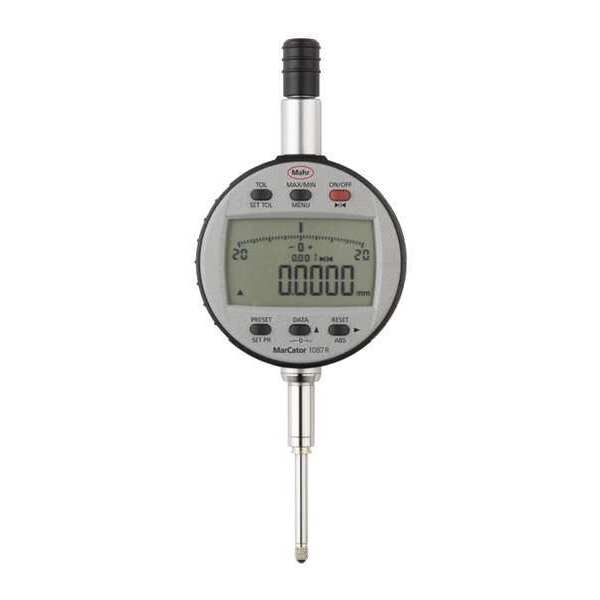

Mahr Digital Indicator, 1087 R, 1 in. Range 4337671 - main

Digital Indicator, 1087 R, 1 in. Range

  • Mfr # 4337671

  • Zoro # G2014279

product price: $799.99
/ea
Free Shipping & Returns

Key Features

Series
Series 1087 R
Range
0.00002 in to 1 in
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4337671
Zoro #
G2014279
UPC #
712155480896
Country of Origin
China

Dimensions

Stem Dia.
8 mm
Dimension Type
Inch/Metric
Contact Point Dia.
4 mm
Dial Size
58 mm
Stem Thread Size
M2.5
Battery Size
CR2450
Contact Point Diameter
4 mm
Stem Diameter
8 mm

Details

Item
Digital Indicator
Series
Series 1087 R
Range
0.00002 in to 1 in
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
Long Form Calibration Certificate
No
Includes
Battery
Features
High Contrast LCD with 8.5mm High Digits, Immediate Measurement Due to The Reference System, Inch/Millimeter Functions, Inductive Measuring System, Lock Function, MarConnect Data Output, On/Off, Operating and Display Unit Can Be Rotated 280 Degrees , Zero-Set
SPC Output
Yes
Back Type
Flat
Display Type
LCD
Minimum Measurement - mm
0.001 mm
IP Rating
IP42
Maximum Measurement - Inch
1 in
Max. Measuring Force
0.65 N
Maximum Measurement - mm
25 mm
Minimum Measurement - Inch
0 in
Includes Battery
Yes
Operation Type
Plunger
Number of Indicators
1
Case Type
Box
Variable Resolution
Yes
Compatible Data Output Cable
4102357
Bezel Type
No
Non-Magnetic
No
Includes Case
Yes
Compatible Wireless Transmitter
Mahr I-Stick 4102306
Data Output Type
Cabled
Contact Point Shape
Curved
Included Certification
Certificate of Inspection
Inches Measured - Maximum
1 in
Bezel Lock
No
Inches Measured - Minimum
0 in
Body Color
Black
Maximum Measuring Force
0.65 N
Millimeters Measured - Minimum
0.001 mm
Millimeters Measured - Maximum
25 mm

Description

Digital Indicator, Series Series 1087 R, Resolution 0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in, Accuracy 0.002 mm, Range 0.00002 in to 1 in, Bezel Yes, Long Form Calibration Certificate No

Restrictions

Hazardous material
