  13. Digital Indicator, 1087 Ri, 1 in. Range

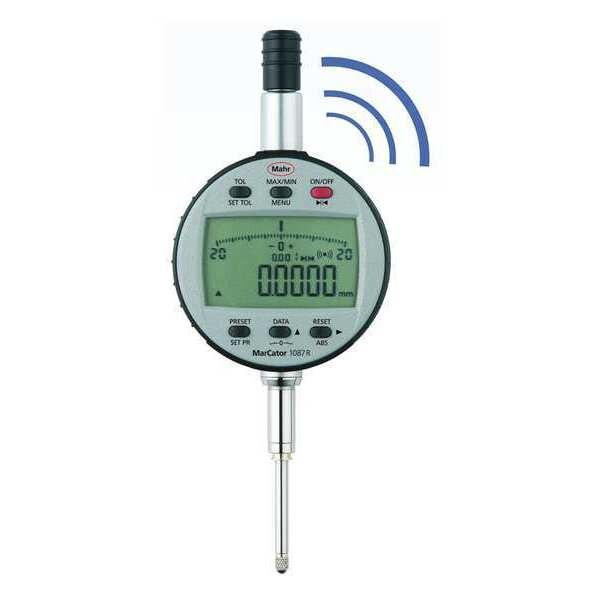

Mahr Digital Indicator, 1087 Ri, 1 in. Range 4337665 - main

Digital Indicator, 1087 Ri, 1 in. Range

  • Mfr # 4337665

  • Zoro # G2014297

product price: $952.99
/ea
Free Shipping & Returns

Key Features

Series
Series 1087 Ri
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
Long Form Calibration Certificate
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4337665
Zoro #
G2014297
UPC #
712155480858
Country of Origin
China

Dimensions

Contact Point Dia.
4 mm
Stem Dia.
8 mm
Dial Size
58 mm
Dimension Type
Inch/Metric
Battery Size
CR2450
Stem Thread Size
M2.5
Contact Point Diameter
4 mm
Stem Diameter
8 mm

Details

Item
Digital Indicator
Series
Series 1087 Ri
Range
0.00002 in to 1 in
Resolution
0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in
Accuracy
0.002 mm
Bezel
Yes
Long Form Calibration Certificate
No
Includes
Battery
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Integrated Wireless Data Transmission, Immediate Measurement Due to The Reference System, Lock Function, Class of Protection IP42 In Accordance to IEC 60529
Includes Battery
Yes
Maximum Measurement - mm
25 mm
IP Rating
IP42
Minimum Measurement - mm
0.001 mm
Minimum Measurement - Inch
0 in
SPC Output
Yes
Max. Measuring Force
0.65 N
Display Type
LCD
Maximum Measurement - Inch
1 in
Operation Type
Plunger
Back Type
Flat
Number of Indicators
1
Bezel Type
No
Compatible Data Output Cable
4102357
Variable Resolution
Yes
Compatible Wireless Transmitter
Mahr Integrated
Contact Point Shape
Curved
Case Type
Box
Data Output Type
Cabled, Wireless
Non-Magnetic
No
Includes Case
Yes
Included Certification
Certificate of Inspection
Maximum Measuring Force
0.65 N
Inches Measured - Maximum
1 in
Inches Measured - Minimum
0 in
Millimeters Measured - Maximum
25 mm
Body Color
Black
Millimeters Measured - Minimum
0.001 mm
Bezel Lock
No

Description

Digital Indicator, Series Series 1087 Ri, Resolution 0.0002 mm, 0.00002 in, 0.001 mm, 0.00005 in, 0.002 mm, 0.0001 in, 0.005 mm, 0.01 mm, 0.0005 in, Accuracy 0.002 mm, Range 0.00002 in to 1 in, Bezel Yes, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Integrated Wireless Data Transmission, Immediate Measurement Due to The Reference System, Lock Function, Class of Protection IP42 In Accordance to IEC 60529, Includes Battery
