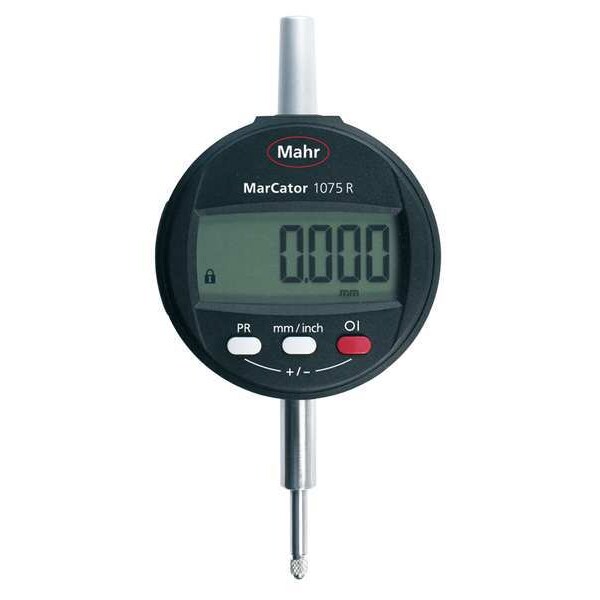

Mahr Electronic Digital Indicator, 0.500 In 4336020 - main

Electronic Digital Indicator, 0.500 In

  • Mfr # 4336020

  • Zoro # G3025592

product price: $339.99
/ea
Free Shipping & Returns

Key Features

Series
Series 1075 R
Range
0.00002 in to 0.5 in
Resolution
0.0001 in, 0.005 mm
Accuracy
0.015 mm
Bezel
2.28 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4336020
Zoro #
G3025592
UPC #
712155480636
Country of Origin
China

Dimensions

Stem Dia.
8 mm
Dial Size
58 mm
Contact Point Dia.
4 mm
Dimension Type
Inch/Metric
Stem Thread Size
M2.5
Battery Size
CR2450
Contact Point Diameter
4 mm
Stem Diameter
8 mm

Details

Item
Digital Indicator
Series
Series 1075 R
Range
0.00002 in to 0.5 in
Resolution
0.0001 in, 0.005 mm
Accuracy
0.015 mm
Bezel
2.28 in
Long Form Calibration Certificate
No
Features
On/Off, Reversal of Counting Direction, Inch/Metric, Preset, Data Output, Capacitive Measuring System, Lock Out Function, LCD
Includes
8mm Stem, Storage Case, Battery
Minimum Measurement - Inch
0 in
Display Type
LCD
Includes Battery
Yes
Max. Measuring Force
0.65 N
Includes Case
Yes
Minimum Measurement - mm
0.001 mm
Back Type
Flat
Maximum Measurement - Inch
0.5 in
Maximum Measurement - mm
12.7 mm
SPC Output
Yes
IP Rating
IP52
Number of Indicators
1
Operation Type
Plunger
Compatible Data Output Cable
4102357
Bezel Type
No
Variable Resolution
No
Case Type
Box
Contact Point Shape
Curved
Included Certification
Certificate of Inspection
Non-Magnetic
No
Compatible Wireless Transmitter
Mahr I-Stick 4346020
Data Output Type
Cabled
Bezel Lock
No
Millimeters Measured - Maximum
12.7 mm
Inches Measured - Maximum
0.5 in
Inches Measured - Minimum
0 in
Maximum Measuring Force
0.65 N
Body Color
Black
Millimeters Measured - Minimum
0.001 mm

Description

Digital Indicator, Series Series 1075 R, Resolution 0.0001 in, 0.005 mm, Accuracy 0.015 mm, Range 0.00002 in to 0.5 in, Bezel 2.28 in, Long Form Calibration Certificate No, Features On/Off, Reversal of Counting Direction, Inch/Metric, Preset, Data Output, Capacitive Measuring System, Lock Out Function, LCD, Includes 8mm Stem, Storage Case, Battery

Restrictions

Hazardous material
