  13. Pocket Surface Gage, 5micron Probe

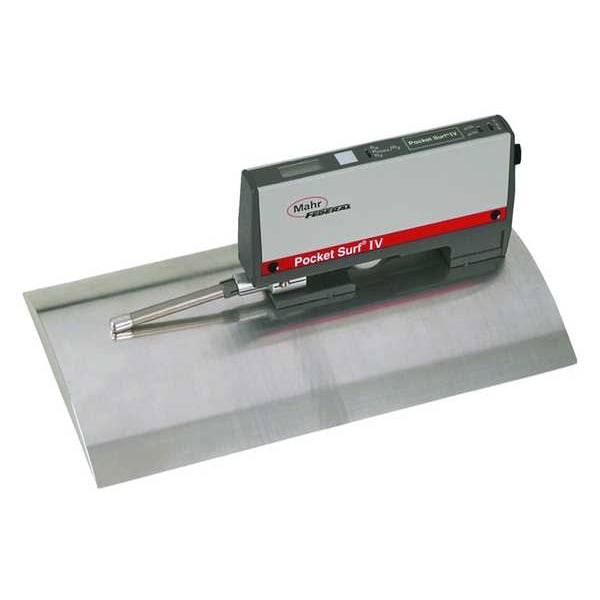

Mahr Pocket Surface Gage, 5micron Probe 2191802 - main

Pocket Surface Gage, 5micron Probe

  • Mfr # 2191802

  • Zoro # G0463751

product price: $2,789.99
/ea
Free Shipping & Returns

Key Features

Measuring Range
Ra: 6.35 micron m/250 micron in, Ry, Rmax, Rz: 25.3 micron m/999 micron in
Profile
Ra, Rz, Rmax
Sampling Length (In.)
0.03 in, 0.09 in, 0.15 in
Number of Sampling Spans
1; 3; 5
Probe
5 micron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2191802
Zoro #
G0463751
UPC #
-
Country of Origin
United States

Dimensions

Sampling Length (In.)
0.03 in, 0.09 in, 0.15 in
Cut Off Length (In.)
0.03 in
Probe Tip Radius
5 um
Transverse Cutoff Length
0.8 mm
Dimensions - Display Unit
140 mm x 76 mm x 6.35 mm
Sampling Length
0.8 mm
Dimensions - Drive Unit
140 mm x 76 mm x 6.35 mm

Details

Item
Handheld Surface Roughness Tester
Measuring Range
Ra: 6.35 micron m/250 micron in, Ry, Rmax, Rz: 25.3 micron m/999 micron in
Profile
Ra, Rz, Rmax
Number of Sampling Spans
1; 3; 5
Probe
5 micron
Detector
15 mN
Drive Unit
Traverse
Features
Durable Cast Aluminum Housing to Provide Years of Accurate and Reliable Measuring Operations, Review All Of The Parameters After the Measurement is Complete, Adjustable Measuring Length Based on 1, 3 or 5 Times The Cutoff Wavelength of 0.8mm/0.030", Operates in Any Position - Horizontal, Vertical, And Upside Down, Four Switchable Probe Positions, Even Difficult to Reach Surfaces Such as Inside and Outside Diameters are Accessible, Marconnect Data Output For Easy Data Transfer That is Compatible with Standard Data Processing SystemsEasy To Read Lcd Presents The Measured Roughness Value In ¿m Or ¿inch Immediately After ScanningOut Of Range (High Or Low) And 'Low Battery' Signals Are Also DisplayedSimplified Calibration ProcessImproved Battery Life With 9V Battery That Is Easy To Replace
Analysis Graph
No
Tester Series
Marsurf Pocket Surf IV
For Use With
Pocket Surf Probes
Power Supply
9V Battery
Measuring Range Rz
25.3 micrometer/999 microinch
Detector Measuring Force
15 mN
Drive Unit Principle
Skid
SPC Output
Yes
Construction
Cast Aluminum
Number of Parameters Measured
4
Probe Sensor Type
Piezoelectric
Profile Resolution
0.01 micron, 1 microinch
Data Output Connection Type
RS232C, USB
Compatible Data Output Cable
Mfr. No. 4346020, Mfr. No. 4346023
Probe Positions
90 degrees, 180 degrees, 270 degrees, Axial (Folded)
Measuring Range (mm)
6.35 micron
Minimum Operating Temperature - F
41 Degrees F
Data Output Type
Cabled
IP Rating
Not Rated
Minimum Operating Temperature - C
5 Degrees C
Operating Position
Horizontal, Vertical, Upside Down
Parameters Measured
Ra, Rmax, Ry, Rz
Measuring Range Ra
6.35 micrometer/250 microinch
Maximum Operating Temperature - C
45 Degrees C
Maximum Operating Temperature - F
112 Degrees F
Display Functions
LCD
Memory Storage Capacity
1
Measuring Range (In.)
6.35 micrometer/250 microinch
Measuring Condition Standards
DIN ISO/JIS
Calibration Functions
Digital Calibration
Includes Printer
No
Operating Temperature Range
41 Degrees F to 112 Degrees F / 5 Degrees C to 45 Degrees C
Product Type
Handheld Surface Roughness Tester
Rz Measured - Maximum
200 um
Operating Temperature - Minimum
41 Degrees F
Ra Measured - Maximum
30 um
Inches Measured - Maximum
0.195 in
Operating Temperature - Maximum
112 Degrees F
Millimeters Measured - Maximum
5 mm
Millimeters Measured - Minimum
2 mm
Inches Measured - Minimum
0.075 in

Description

When it comes to surface roughness, the Marsurf Pocket Surface Gage is the ideal handheld device. It offers a quick and easy way to measure various surfaces. The Marsurf Pocket Surface Gage has a total of five probe positions, allowing you to test any angle of your choice. The measuring range on this pocket surface gage is from 6.35 micron m/250 micron in.. With an accuracy of +/-0.1%, this handheld surface roughness tester measures both Ra and Rz at 25.3 micron m/999 micron in.. This pocket surf gage features a sampling length of 0.03 in., 0.09 in., 0.15 in.. as well as compatible data output cables that measure 1 ft., 3 ft., 5 ft.. respectively. When it comes to getting accurate measurements, you will definitely want to equip yourself with the Marsurf Pocket Surface Gage today.
