Shop MAHR

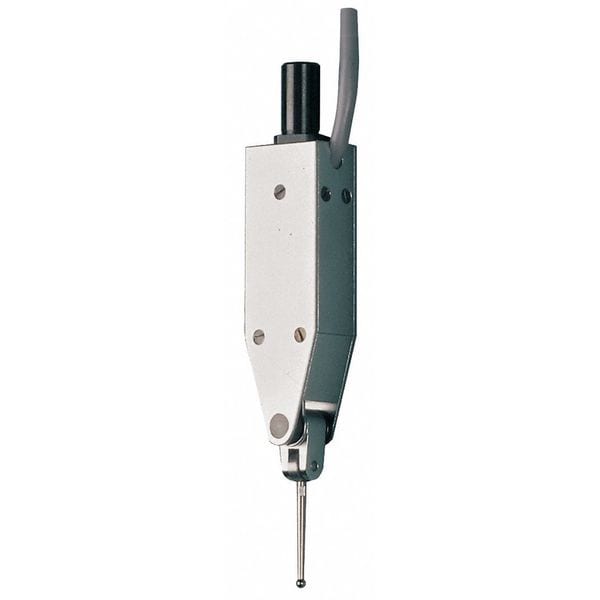

Probe, 3-1/2" D, 3-1/2" W

  • Mfr # 5313180

  • Zoro # G5505320

product price:  $1,441.99
/ea
Free Shipping & Returns

Key Features

Type
Linear Variable Differential Transformer
Dia. (In.)
5/16
For Use With
Mahr LVDT
Application
Manufacturing, Metal Working, Quality Control
Includes
Case, Instruction Manual, Power Source, Rubber Bellows, Spanner for Preliminary Stroke Setting
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5313180
Zoro #
G5505320
UPC #
-
Country of Origin
Germany

Dimensions

Dia. (In.)
5/16
Depth (In.)
3-1/2
Width (In.)
3-1/2
Dimensions (In.)
0.078 D x 0.826 L
Probe Length
108.5 mm
Dimension Type
Inch/Metric
Cable Length
1.5 m

Details

Item
Lever-Style Inductive Probe with Cable
Type
Linear Variable Differential Transformer
For Use With
Mahr LVDT
Application
Manufacturing, Metal Working, Quality Control
Includes
Case, Instruction Manual, Power Source, Rubber Bellows, Spanner for Preliminary Stroke Setting
Paper Type
Paperless
Power Supply
Amplifier
Maximum Measurement - Inch
0.3900 in
Maximum Measurement - mm
1 mm
Operation Type
Lever
Range
-0.120 to 0.390 in/-0.3 to 1 mm
IP Rating
IP50
Max. Measuring Force
0.25 N
Repeatability
1.2 uin, 0.03 micron
Minimum Measurement - mm
-0.3 mm
Accuracy
+/-36 uin/0.9 micron
Includes Cable
Yes
Minimum Measurement - Inch
-0.1200 in
Hysteresis
0.5 micron
Brand and Series
Millimar 1318
Inches Measured - Minimum
-0.12 in
Inches Measured - Maximum
0.39 in
Millimeters Measured - Maximum
1 mm
Millimeters Measured - Minimum
-0.3 mm

Description

Lever-Style Inductive Probe with Cable, Range -0.120 to 0.390 in/-0.3 to 1 mm, Accuracy +/-36 uin/0.9 micron, Cable Length 1.5 m, Includes Cable Yes, Maximum Measurement - Inch 0.3900 in, Maximum Measurement - mm 1 mm, Minimum Measurement - Inch -0.1200 in, Minimum Measurement - mm -0.3 mm, Operation Type Lever, Probe Length 108.5 mm, Dimension Type Inch/Metric, For Use With Mahr LVDT, Hysteresis 0.5 micron
