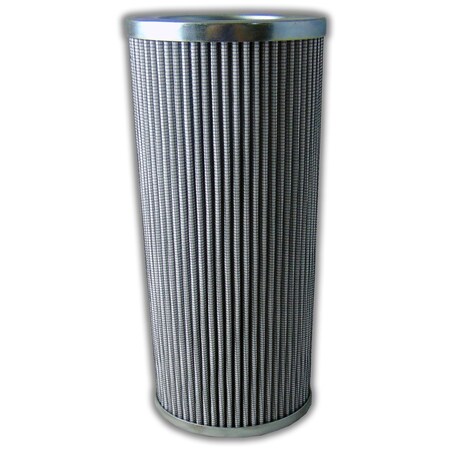

Hydraulic Filter, replaces WIX R80D20EB, Return Line, 25 micron, Outside-In

Main Filter Hydraulic Filter, replaces WIX R80D20EB, Return Line, 25 micron, Outside-In MF0602586
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$39.45
  • Filter Style: Return Line
  • Replaces OEM Brand: WIX
  • Replaces OEM Part: R80D20EB
See full product details
Orders over $75 ship free.
Total: $39.45

Main Filter #MF0602586 Specifications

  • Filter Style: Return Line
  • Replaces OEM Brand: WIX
  • Replaces OEM Part: R80D20EB
  • Filter Rating (Microns): 25
  • Flow Direction: Outside-In
  • Beta Ratio 1: 200/20.7
  • Beta Ration 2: 1000/26.6
  • Height: 5.82
  • OD Top: 2.91
  • OD Bottom: 2.91
  • ID Top: 1.5
  • ID Bottom: 1.81
  • Collapse Pressure: 435
  • Micron Rating: 25
  • OEM Replacement Brand: WIX
  • Filter Type: Return Line
  • Item: Hydraulic Filter
  • Application: Filtration
  • Weight: 0.7
  • Product Media: Glass
  • Country of Origin (subject to change): Canada
Feedback Help us improve our product information

Description

Main Filter MF0065172 replaces OEM R80D20EB by WIX and is compatible in fit, form and function. Filter Technical Specifications Product Media: Glass Micron Rating: 20 Height: 5.82in OD Top: 2.913in OD Bottom: 2.913in ID Top: 1.496in ID_Bottom: 1.811in All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941 All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of Main Filter Inc filter with the OEM filter. Images may be a general representations of products+

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
