Shop MAMAC

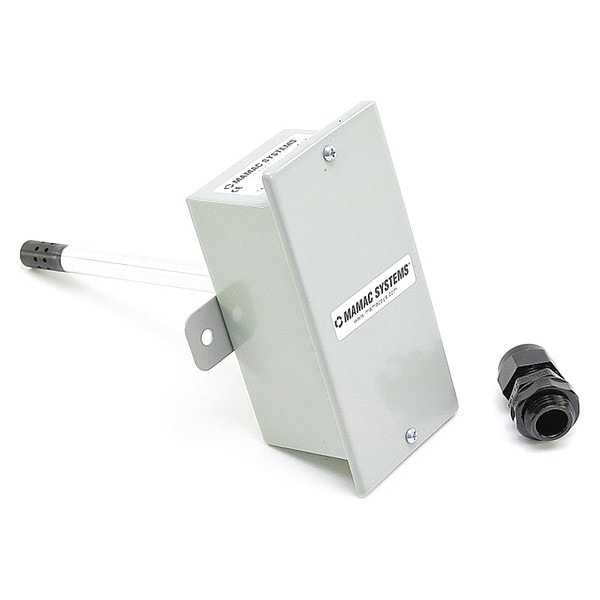

Transducer

  • Mfr # HU-224-2-MA
  • Zoro # G7763887
product price:
$
178.99
/ea
Free Shipping & Returns

Key Features

Fits Brand
MAMAC
Application
Humidifiers
Manufacturers Warranty Length
5 yr
Standards
RoHS
Features
Proprietary Hydrophobic and Oleophobic EPTFE Filter to Protect the Sensing Element from Condensation Fog Salt Air Pollutants and Other Contaminants, Two Temperature Compensated Output Versions
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HU-224-2-MA
Zoro #
G7763887
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
5 yr
Overall Width
2 3/4 in
Overall Depth
4 1/2 in
Overall Height
2 3/4 in

Details

Item
Transducer
Fits Brand
MAMAC
Application
Humidifiers
Standards
RoHS
Features
Proprietary Hydrophobic and Oleophobic EPTFE Filter to Protect the Sensing Element from Condensation Fog Salt Air Pollutants and Other Contaminants, Two Temperature Compensated Output Versions
Product Type
Transducer
Humidity Accuracy
+/-2% or +/-3% RH
Power Source
12 to 40V DC/12 to 35V AC
Housing Color
Off-White
Series
HU-224/225
Sensing Element Type
All-Polymer
RH Sensor
Capacitive
Wall Plate Style
Flush
NEMA Rating
4
Relative Humidity Range
0 to 100%
Electrical Connection Type
Hardwired
Housing Material Finish
Baked Enamel
Output
0 to 5VDC/0 to 10VDC, 4 to 20mA
NIST Traceable Certificate
NIST Traceable Certified
Housing Type
Flange Mount
Power Type
Electrical
Hysteresis
+/-1%
Compensated Temperature Range
-30 Degrees to 130 Degrees F
Relative Humidity Accuracy
+/-3% of Full Scale
IP Rating
IP65
Power Required
12 to 40V DC or 12 to 35V AC
Interface Type
Switch
Housing Material
Plastic, Steel
Weight
1 lb
Power Source - TS Only
12 to 40V DC/12 to 35V AC
Power Source - old
12 to 40V DC/12 to 35V AC

Description

Transducer, Sensing Element Type All-Polymer, Mounting Location Wall Mount, Output 0 to 5VDC/0 to 10VDC, 4 to 20mA, Housing Material Plastic, Steel, Housing Color Off-White, Electrical Connection Type Hardwired, Relative Humidity Accuracy +/-3 Percent of Full Scale, Overall Width 2 3/4 in, Overall Height 2 3/4 in, Relative Humidity Range 0 to 100 Percent, Hysteresis +/-1 Percent, Product Type Transducer
