Mapp Caster

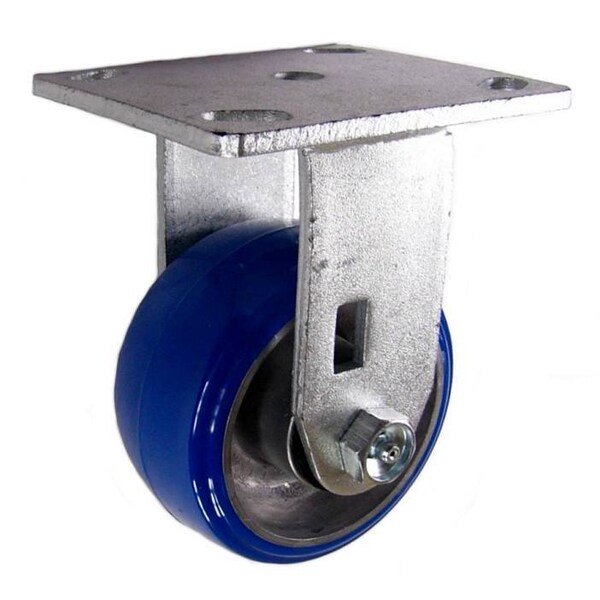

4"X2" Polyurethane on Aluminum Wheel Rigid Caster - 750 Lbs Capacity
- Zoro #: G000593134
- Mfr #: 1463P7B420R
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Overall Height: 5-5/8 in
- Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
- Wheel Color: Blue
- Wheel Type: Polyurethane on Aluminum
- Frame Finish: Bright Zinc Plated
- Mounting Bolt Dia.: 3/8 in or Smaller
- Caster Frame Material: Cold Rolled Steel
- Load Capacity: 750 lb
$35.01
Subtotal: $35.01
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Mapp Caster #1463P7B420R Specifications
- Zoro #: G000593134
- Mfr #: 1463P7B420R
- Caster Sub-Type: Rigid
- Overall Height: 5-5/8 in
- Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
- Wheel Color: Blue
- Wheel Type: Polyurethane on Aluminum
- Frame Finish: Bright Zinc Plated
- Mounting Bolt Dia.: 3/8 in or Smaller
- Caster Frame Material: Cold Rolled Steel
- Load Capacity: 750 lb
- Weight: 4.75 lb
- Temperature Range: -20 to 180°F
- Tread Width: 2 in
- Wheel Diameter: 4 in
- Wheel/Tread Hardness: Shore D 55 (+/-5)
- Mounting Plate: 4 in X 4-1/2 in
- Country of Origin (subject to change): China
Description
Polyurethane on Aluminum wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. Polyurethane on aluminum caster wheels are considered the premium polyurethane wheel.These caster wheels offer all the benefits of polyurethane on iron wheels, and also has the added benefit of being lighter, easier to roll, resistant to rust/corrosion, and have a mechanically bonded tread helping to prevent the tread from de-bonding from the core. These wheels can be used in most applications, but are not recommended for hot or cold applications.
