Mapp Caster

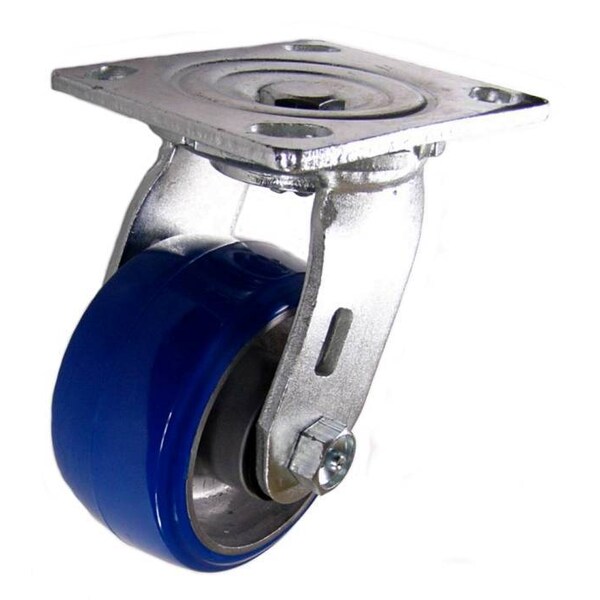

4"X2" Polyurethane on Aluminum Wheel Swivel Caster - 750 Lbs Cap

Mapp Caster 4"X2" Polyurethane on Aluminum Wheel Swivel Caster - 750 Lbs Cap 1463P7B420S
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$47.76
  • Caster Sub-Type: Swivel
  • Overall Height: 5-5/8 in
  • Mounting Bolt Dia.: 3/8 in or Smaller
See full product details
Orders over $75 ship free.
Total: $47.76

Mapp Caster #1463P7B420S Specifications

  • Caster Sub-Type: Swivel
  • Overall Height: 5-5/8 in
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Frame Finish: Bright Zinc Plated
  • Wheel Type: Polyurethane on Aluminum
  • Caster Frame Material: Cold Rolled Steel
  • Wheel Color: Blue
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
  • Swivel Radius: 3-1/4 in
  • Weight: 5 lb
  • Tread Width: 2 in
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Wheel/Tread Hardness: Shore D 55 (+/-5)
  • Load Capacity: 750 lb
  • Temperature Range: -20 to 180°F
  • Wheel Diameter: 4 in
  • Mounting Plate: 4 in X 4-1/2 in
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Polyurethane on Aluminum wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. Polyurethane on aluminum caster wheels are considered the premium polyurethane wheel.These caster wheels offer all the benefits of polyurethane on iron wheels, and also has the added benefit of being lighter, easier to roll, resistant to rust/corrosion, and have a mechanically bonded tread helping to prevent the tread from de-bonding from the core. These wheels can be used in most applications, but are not recommended for hot or cold applications.

Restrictions and Compliance

This item has been restricted from sale in the following states: No
