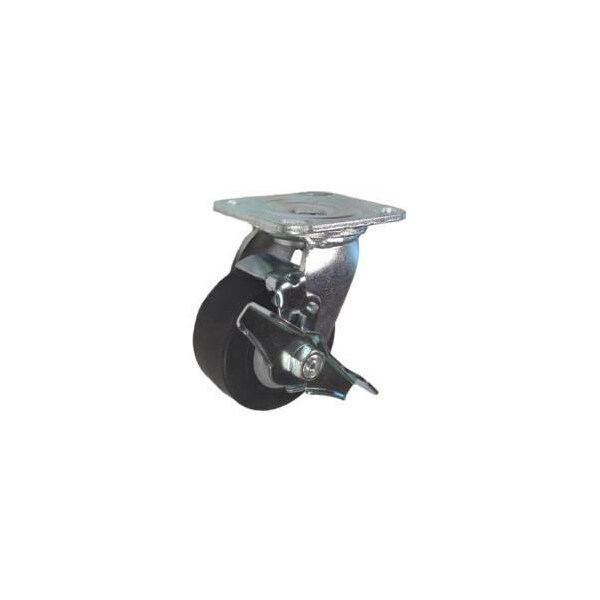

4"X2" Thrmplstc Rubber (TPR) Wheel Swvl Caster W/ Brake, 400 Lbs Cap

Mapp Caster 4"X2" Thrmplstc Rubber (TPR) Wheel Swvl Caster W/ Brake,  400 Lbs Cap 146PERB420SB
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$48.29
  • Caster Sub-Type: Swivel with Brake
  • Overall Height: 5-5/8 in
  • Mounting Bolt Dia.: 3/8 in or Smaller
See full product details
Orders over $75 ship free.
Total: $48.29

Mapp Caster #146PERB420SB Specifications

  • Caster Sub-Type: Swivel with Brake
  • Overall Height: 5-5/8 in
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Wheel Color: Black
  • Frame Finish: Bright Zinc Plated
  • Wheel Type: Thermoplastic Rubber
  • Caster Frame Material: Cold Rolled Steel
  • Swivel Radius: 3-1/4 in
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
  • Weight: 6 lb
  • Mounting Plate: 4 in X 4-1/2 in
  • Tread Width: 2 in
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Temperature Range: -20°F to 180°F
  • Load Capacity: 400 lb
  • Wheel/Tread Hardness: Shore A 65 (+/-5)
  • Wheel Diameter: 4 in
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels. We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.
