Mapp Caster

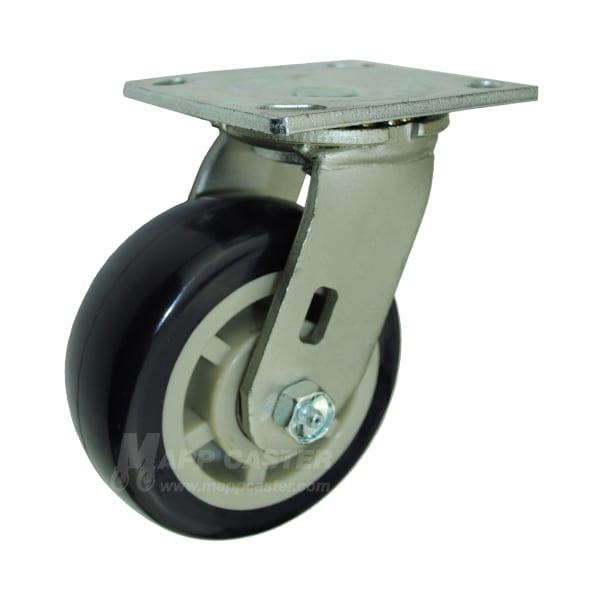

5"X2" Patriot Poly. on Polyolefin Core Wheel Swvl Caster, 800 Lbs Cap

Mapp Caster 5"X2" Patriot Poly. on Polyolefin Core Wheel Swvl Caster,  800 Lbs Cap 146PRX520S
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$30.12
  • Caster Sub-Type: Swivel
  • Overall Height: 6-1/2 in
  • Wheel Type: Polyurethane on Polyolefin
See full product details
Orders over $75 ship free.
Total: $30.12

Mapp Caster #146PRX520S Specifications

  • Caster Sub-Type: Swivel
  • Overall Height: 6-1/2 in
  • Wheel Type: Polyurethane on Polyolefin
  • Swivel Radius: 4 in
  • Caster Frame Material: Cold Rolled Steel
  • Frame Finish: Bright Zinc Plated
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Wheel Color: Black
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
  • Weight: 4.9 lb
  • Wheel Bearing Type: Precision Ball
  • Wheel/Tread Hardness: Shore D 60 (+/-5)
  • Wheel Diameter: 5 in
  • Load Capacity: 800 lb
  • Mounting Plate: 4 in X 4-1/2 in
  • Temperature Range: -20°F to 180°F
  • Tread Width: 2 in
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Polyurethane on polyolefin wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on polyolefin wheels are going to be the most economically priced of the polyurethane wheels and great for general industrial applications.These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Restrictions and Compliance

This item has been restricted from sale in the following states: No
