Mapp Caster

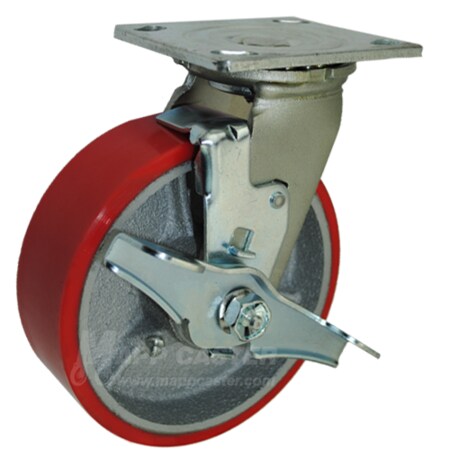

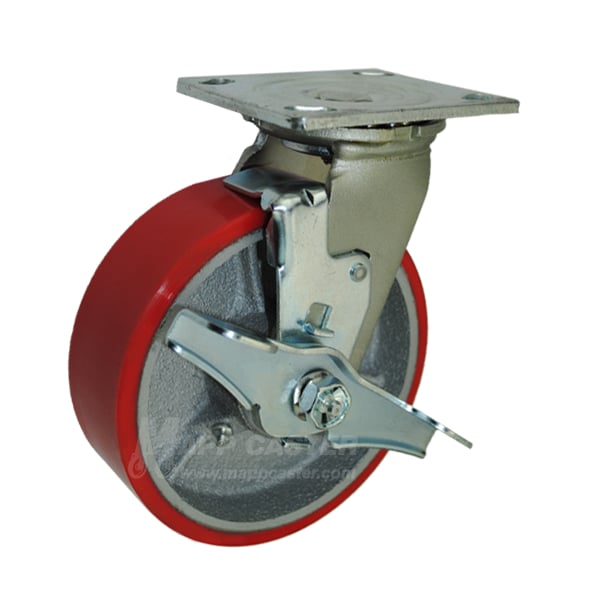

6"X2" Red Poly. on Iron Whl Swvl Caster W/ Top Lock Brake, 1200Lbs Cap
- Zoro #: G000593141
- Mfr #: 146PURB620SB
Hover or click to zoom Tap to zoom
Help us improve our
product images
Key Features
- Overall Height: 7-1/2 in
- Frame Finish: Bright Zinc Plated
- Swivel Radius: 4-9/16 in
- Mounting Bolt Dia.: 3/8 in or Smaller
- Caster Frame Material: Cold Rolled Steel
- Wheel Type: Poly on Iron
- Wheel Color: Red & Grey
- Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
$45.08
Subtotal: $45.08
Sign In For Free Shipping On $50+ Orders
30-Day Returns
125 U.S.-Based Customer Service Agents
Mapp Caster #146PURB620SB Specifications
- Zoro #: G000593141
- Mfr #: 146PURB620SB
- Caster Sub-Type: Swivel with Top Lock Brake
- Overall Height: 7-1/2 in
- Frame Finish: Bright Zinc Plated
- Swivel Radius: 4-9/16 in
- Mounting Bolt Dia.: 3/8 in or Smaller
- Caster Frame Material: Cold Rolled Steel
- Wheel Type: Poly on Iron
- Wheel Color: Red & Grey
- Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
- Weight: 8.75 lb
- Load Capacity: 1,200 lb
- Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
- Mounting Plate: 4 in X 4-1/2 in
- Tread Width: 2 in
- Wheel Diameter: 6 in
- Wheel/Tread Hardness: Shore A 95 (+/-5)
- Temperature Range: -40°F to 180°F
- Country of Origin (subject to change): China
Description
Polyurethane on iron caster wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on iron wheels are going to be more durable & heavier duty than a polyurethane on polyolefin wheel, but heavier and slightly more difficult to get rolling than a polyurethane on aluminum core wheel. These poly on iron wheels are recommended when you need heavy duty polyurethane wheel but do not want to pay for the premium poly on aluminum castor wheels. These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in water for most of their use.
