Mapp Caster

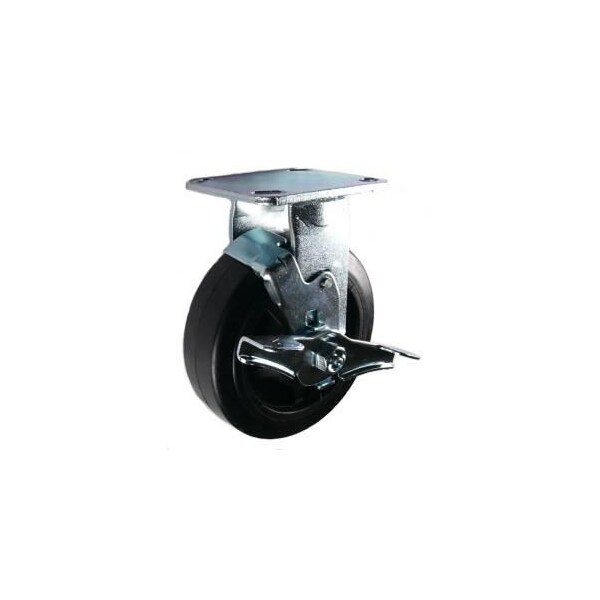

6"X2" Rubber on Nylon Wheel Rigid Caster W/ Brake - 500 Lbs Cap

Mapp Caster 6"X2" Rubber on Nylon Wheel Rigid Caster W/ Brake - 500 Lbs Cap 146RNB620RB
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$31.15
  • Caster Sub-Type: Rigid with Top Lock Brake
  • Overall Height: 7-1/2 in
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
See full product details
Orders over $75 ship free.
Total: $31.15

Mapp Caster #146RNB620RB Specifications

  • Caster Sub-Type: Rigid with Top Lock Brake
  • Overall Height: 7-1/2 in
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Frame Finish: Bright Zinc Plated
  • Caster Frame Material: Cold Rolled Steel
  • Wheel Color: Black
  • Wheel Type: Rubber on Nylon
  • Load Capacity: 500 lb
  • Weight: 7.5 lb
  • Wheel/Tread Hardness: Shore A 80 (+/-5)
  • Wheel Diameter: 6 in
  • Mounting Plate: 4 in X 4-1/2 in
  • Tread Width: 2 in
  • Temperature Range: -40°F to 180°F
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Rubber on nylon wheels offer a smooth, quiet, & cushioned ride that will protect floors for an economical price. The nylon core provides equivalent load and impact capacities when compared to cast iron cores, but is rust free and can be used for applications requiring wash downs, high humidity, and outdoor environments. The down side to rubber wheels is they can leave marks on the floor similar to car tires on a road and they have lower capacities compared to other wheels. If you need a non-marking wheel or more capacity, we recommend our thermoplastic rubber wheels or polyurethane wheels.We would not recommend rubber wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Restrictions and Compliance

This item has been restricted from sale in the following states: No
