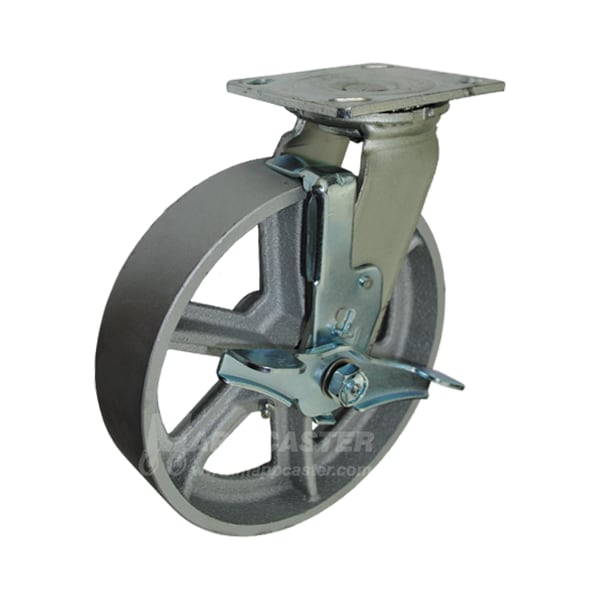

8"X2" Cast Iron Wheel Swivel Caster with Brake - 1,250 Lbs Capacity

  • Mfr # 146CIRB820SB

  • Zoro # G300593209


product price:  $84.59
/ea
Free Shipping & Returns

Key Features

Swivel Radius
6-1/2 in
Caster Sub-Type
Swivel with Top Lock Brake
Overall Height
9-1/2 in
Frame Finish
Bright Zinc Plated
Swivel Construction
Double Ball Raceway - 5/8 in Kingpin
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
146CIRB820SB
Zoro #
G300593209
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
6-1/2 in
Overall Height
9-1/2 in
Mounting Bolt Dia.
3/8 in or Smaller
Tread Width
2 in

Details

Caster Sub-Type
Swivel with Top Lock Brake
Frame Finish
Bright Zinc Plated
Swivel Construction
Double Ball Raceway - 5/8 in Kingpin
Wheel Color
Green
Wheel Type
Cast Iron
Caster Frame Material
Cold Rolled Steel
Weight
12.5 lb
Load Capacity
1,250 lb
Mounting Plate
4 in X 4-1/2 in

Description

Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options. Please note that all 2" wide wheels are heavy duty cast iron & come with thicker treads, stronger spokes, & larger hub diameter compared to the standard cast iron.Whilecast ironis very strong, it is tough on floors and could lead to floor damage. For heavy duty floor protective wheels, be sure to check out our polyurethane wheels.*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
