Mapp Caster

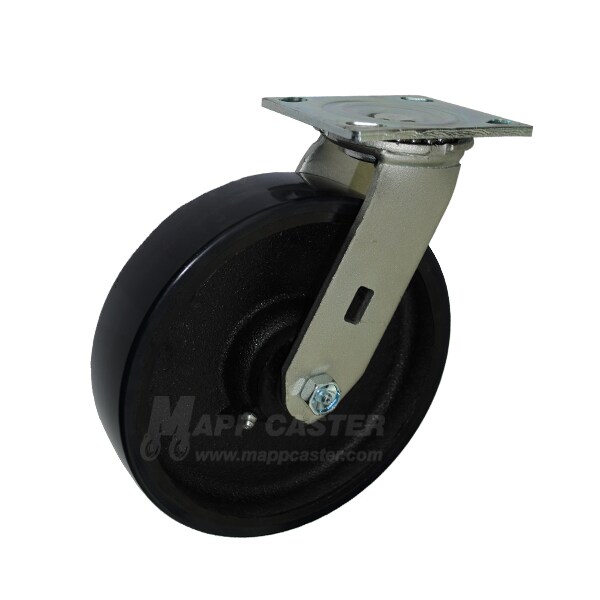

8"X2" Polyurethane on Iron Wheel Swivel Caster - 1,250 Lbs Capacity

Mapp Caster 8"X2" Polyurethane on Iron Wheel Swivel Caster - 1,250 Lbs Capacity 146UIRB820S
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$69.58
  • Caster Sub-Type: Swivel
  • Overall Height: 9-1/2 in
  • Swivel Radius: 6 in
See full product details
Orders over $75 ship free.
Total: $69.58

Mapp Caster #146UIRB820S Specifications

  • Caster Sub-Type: Swivel
  • Overall Height: 9-1/2 in
  • Swivel Radius: 6 in
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
  • Wheel Color: Dark Blue
  • Caster Frame Material: Cold Rolled Steel
  • Frame Finish: Bright Zinc Plated
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Wheel Type: Poly on Iron
  • Weight: 11.8 lb
  • Wheel/Tread Hardness: Shore A 95 (+/-5)
  • Load Capacity: 1,250 lb
  • Temperature Range: -40°F to 180°F
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Mounting Plate: 4 in X 4-1/2 in
  • Tread Width: 2 in
  • Wheel Diameter: 8 in
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Polyurethane on iron caster wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on iron wheels feature a crowned tread for easier rolling and turning, and also have a heavier core compared to the poly on iron wheels with red or green treads. These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in water for most of their use.

Restrictions and Compliance

This item has been restricted from sale in the following states: No

Reviews of Mapp Caster #146UIRB820S
