  9. Cooling Fan, 16 Inch, 12 VDC, 2170 CFM

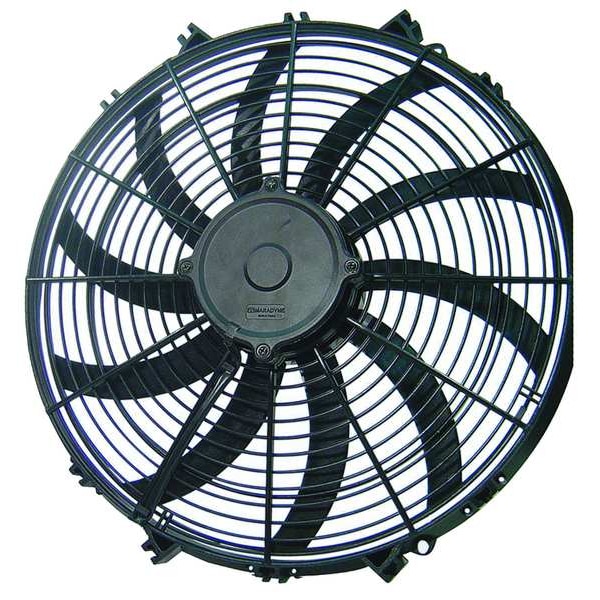

Maradyne Cooling Fan, 16 Inch, 12 VDC, 2170 CFM M162K - main

Cooling Fan, 16 Inch, 12 VDC, 2170 CFM

  • Mfr # M162K

  • Zoro # G3274022

product price: $160.99
/ea
Free Shipping & Returns

Key Features

Blade Dia.
16 in
CFM @ 0.000-In. SP
2,170 cfm
Motor Enclosure
Totally Enclosed
Sones @ 0.000-In. SP @ 5 Ft.
15.7
Number of Blades
10
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M162K
Zoro #
G3274022
UPC #
810349010178
Country of Origin
Turkey

Dimensions

Blade Dia.
16 in
Max. Depth (In.)
3 3/8 in
Venturi Clearance Dia. (In.)
28
Height (In.)
16 3/8 in
Width (In.)
15 7/8 in
Blade Diameter
16 in
Overall Diameter
16 1/4 in
Overall Depth
3 1/4 in

Details

CFM @ 0.000-In. SP
2,170 cfm
Motor Enclosure
Totally Enclosed
Sones @ 0.000-In. SP @ 5 Ft.
15.7
Number of Blades
10
Item
Cooling Fan
Mounting Position
Vertical
CFM @ 0.500-In. SP
1,208 cfm
Motor RPM
2600 to 3200
Drive Package Included
No
Type
High Performance
Motor Type
DC
Bearing Type
Sleeve
CFM @ 0.125-In. SP
1,950 cfm
Full Load Amps
18
CFM @ 0.250-In. SP
1,800 cfm
CFM @ 0.375-In. SP
1,500 cfm
Watts
225 W
Fan Voltage
12V DC
Fiberglass Wall Shutter No.
5C215
Exhaust/Supply Fan Motor HP
3/16 hp
For Use With
OEM and Aftermarket AC Refrigeration Companies, OEM Car Kit Manufacturers and Aftermarket Dealers and Distributors of Radiators, Transmission and Oil Cooling Fans
Exhaust/Supply Fan Item
Exhaust Fan
Max. Ambient Temp. (F)
200 Degrees F
Galvanized Wall Shutter No.
1C746
Propeller Material
Glass Filled Nylon
Standards
DIN EN 60529, IP68
Includes
(4) 90 Degrees Mounting Feet, Nylon Tie Kit, Pigtail Connector, Rubber Spacers
Airflow @ 0.125 in SP
1,950 cfm
Full Load Current
18 A
Motor Horsepower
1/4 hp
Motor Speed
2,600 RPM
Maximum Ambient Operating Temperature
200 Degrees F
Airflow @ 0.000 in SP
2,170 cfm
Material
Nylon

Description

Cooling Fan, Blade Diameter 16 in, Overall Diameter 16 1/4 in, Motor Horsepower 1/4 hp, Motor Speed 2,600 RPM, Motor Enclosure Totally Enclosed, Number of Blades 10, Overall Depth 3 1/4 in, Airflow @ 0.000 in SP 2,170 cfm, Airflow @ 0.125 in SP 1,950 cfm, Full Load Current 18 A, Includes (4) 90 Degrees Mounting Feet, Nylon Tie Kit, Pigtail Connector, Rubber Spacers, Material Nylon, Maximum Ambient Operating Temperature 200 Degrees F, Standards DIN EN 60529, IP68
