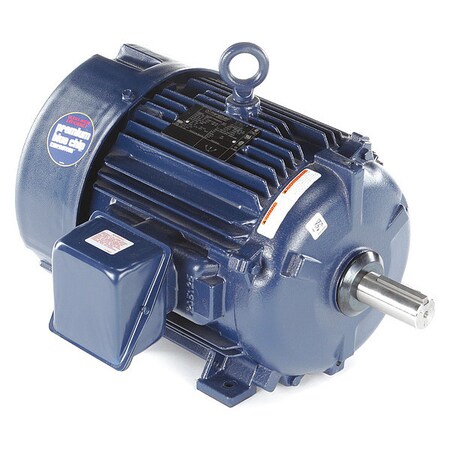

3-Phase General Purpose Motor, 15 HP, 254T Frame, 575 Voltage, 1775 Nameplate RPM (Discontinued)
- Mfr # 254TTFNA6030
- Zoro # G9815486
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
254TTFNA6030
Zoro #
G9815486
UPC #
-
Country of Origin
United States
Dimensions
Manufacturers Warranty Length
1 yr
Overall Length
23 1/2 in
Length Less Shaft
19 5/16 in
Shaft Dia.
1 5/8 in
Shaft Length
4 3/16 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1775, No. of Speeds 1, Voltage 575, Full Load Amps 15.1, 254T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
