This item is Discontinued.

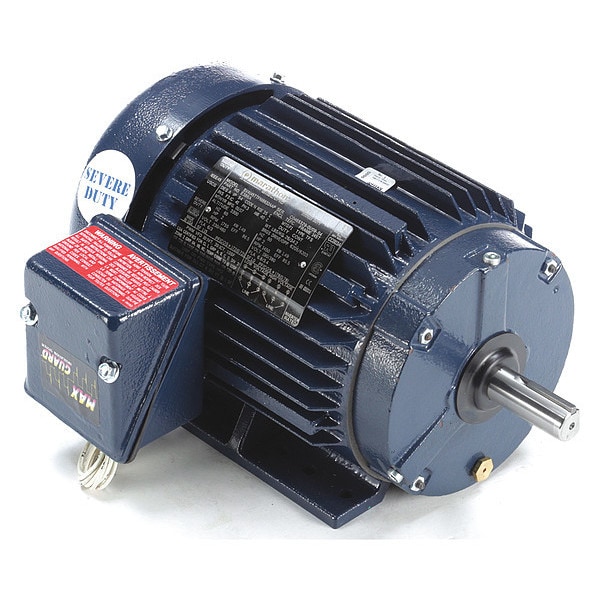

Marathon 3-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460 Voltage, 1755 Nameplate RPM 145TTFN16632

3-Phase General Purpose Motor, 2 HP, 145T Frame, 230/460 Voltage, 1755 Nameplate RPM (Discontinued)

  • Mfr # 145TTFN16632
  • Zoro # G7410186
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
145TTFN16632
Zoro #
G7410186
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
7/8 in
Overall Length
14 3/16 in
Length Less Shaft
11 5/8 in
Shaft Length
2 9/16 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
2
RPM Range
1701-1800
Voltage
230/460
Frame
145T
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
460, 230/460, 220-230/460
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
1755
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Frame Material
Cast Iron
Motor Shaft Design
Keyed
Standards
UL (E49747), CSA (LR2025)
Inverter Rated
Yes
CC Number
CC003A
Max. Ambient Temp.
40 Degrees C
Hz
60/50
Full Load Amps
6.0/3.0
Motor Bearings
Ball
No. of Speeds
1
Duty
Continuous
Nominal Efficiency
59.5%
Ins. Class
F
Frame Material
Cast Iron
RPM Group
1701-1800
Phase
Three
Motor Efficiency Group
NEMA Premium Efficient

Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1755, No. of Speeds 1, Voltage 230/460, Full Load Amps 6.0/3.0, 145T Frame, Hz 60/50, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
